12v 10A Motorcycle Bike ATV 7/8inch Handlebar CNC Switch for Headlight Hazard Brake Fog Light ON Off Switches (Green)
12v 10A Motorcycle Bike ATV 7/8inch Handlebar CNC Switch for Headlight Hazard Brake Fog Light ON Off Switches (Green) - Image 2
12v 10A Motorcycle Bike ATV 7/8inch Handlebar CNC Switch for Headlight Hazard Brake Fog Light ON Off Switches (Green) - Image 3
12v 10A Motorcycle Bike ATV 7/8inch Handlebar CNC Switch for Headlight Hazard Brake Fog Light ON Off Switches (Green) - Image 4

12v 10A Motorcycle Bike ATV 7/8inch Handlebar CNC Switch for Headlight Hazard Brake Fog Light ON Off Switches (Green)

SKU KG.03301 SG-SW0043 Category Tag
SPREAD THE LOVE

Description

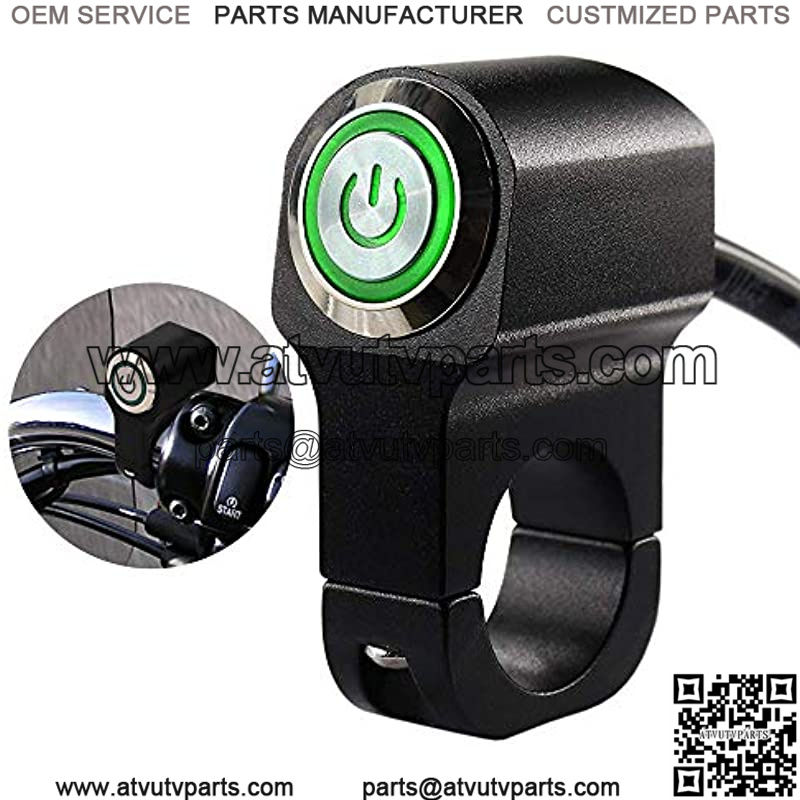

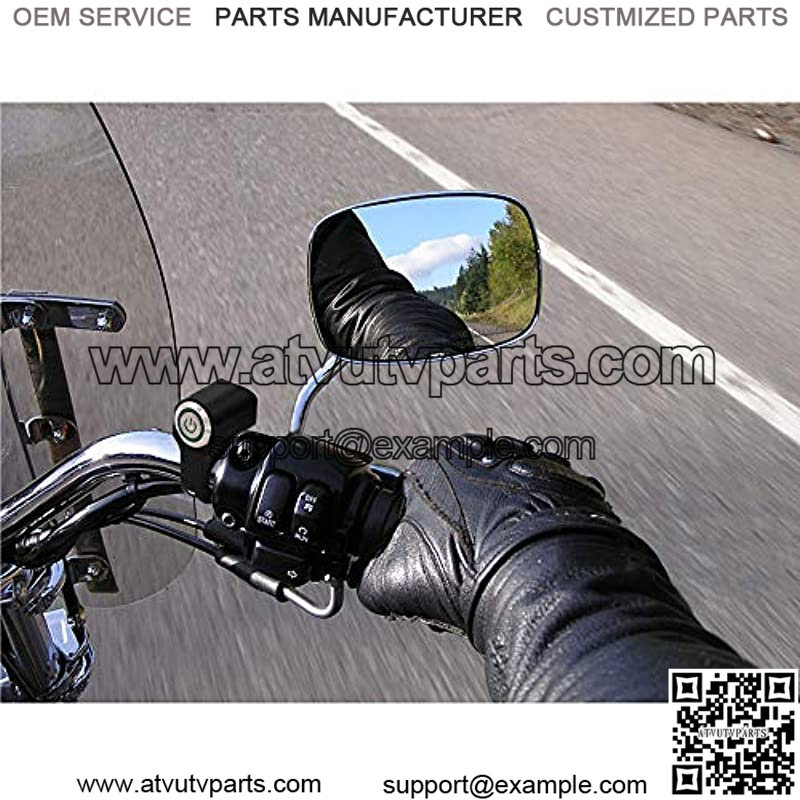

The handlebar apply for grips diameter: 22-23mm (7/8″ inch)
Suitable for 12V battery installation motorcycles,motorbike,scooter.
Switch material:CNC aluminium alloy,Max current for each:10A,Rated voltage:12v,wire length:50cm,3 wires of copper material.Connection:Black(positive).Brown(negative).Blue(connect to the equipment,positive)
Output circuit protection, overload, reverse polarity and multiple protection, safety to use.

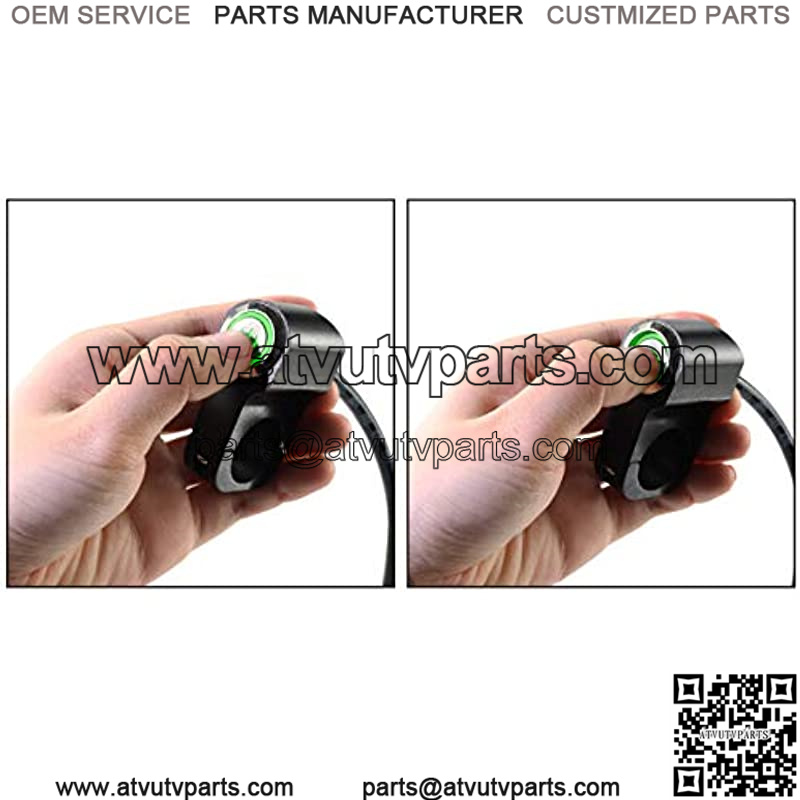

The item has the pilot lamp,when the switch turn on,the pilot lamp will be lighting,or the lamp will off.
Color:Green
|
Size:For 7/8″ 22-23mm handlebar
Feature:
Color:black
Diameter:22mm
Cable lenght:Approx.50cm
Current:10A
Volatge:12V
Electrical: On-Off

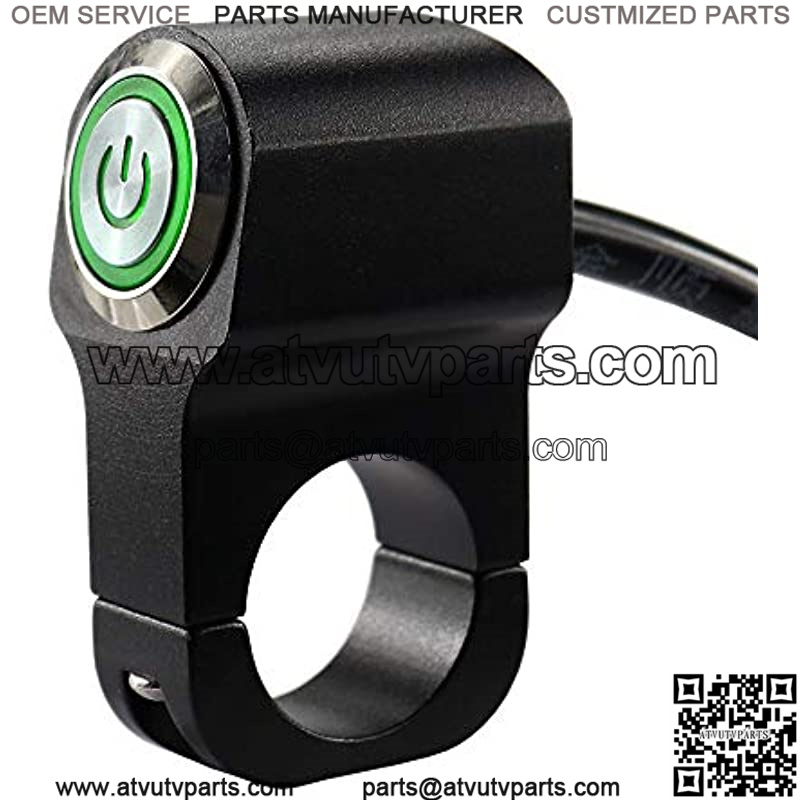

Case Material :aluminum-alloy.
Case Material :aluminum-alloy+ anode sand blasting process.
Mounting Holder apply for Grips Diameter:22-23mm/0.78″-0.90″
Connection:Blue(positive).Brown(negative).Black(connect to the equipment,positive)
