Premium Quality Replacement Part
Primary Drive Clutch Rebuild Kit
For Polaris Models:
Sportsman 800 EFI 2007
Sportsman 700 EFI 2007
Ranger XP 700 4X4 2005-2006
Ranger 700 EFI 6X6 2006-2007

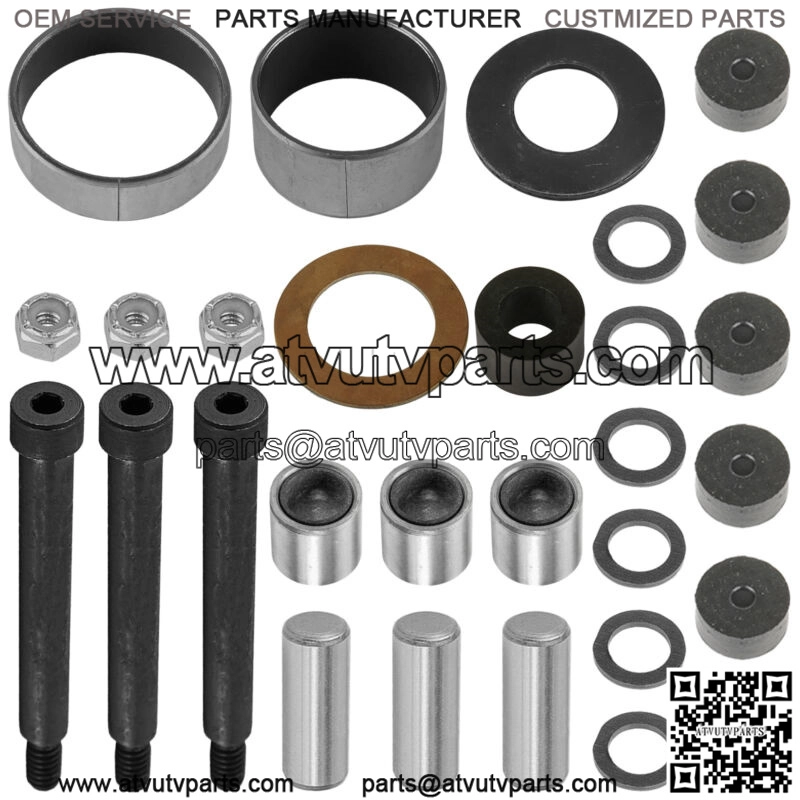

Order Includes:
3 x Roller Bushing : 1321622
Outer Diameter : 14.3 mm – 0.56″
Inner Diameter : 9.5 mm – 0.37″
Height : 14 mm – 0.54″

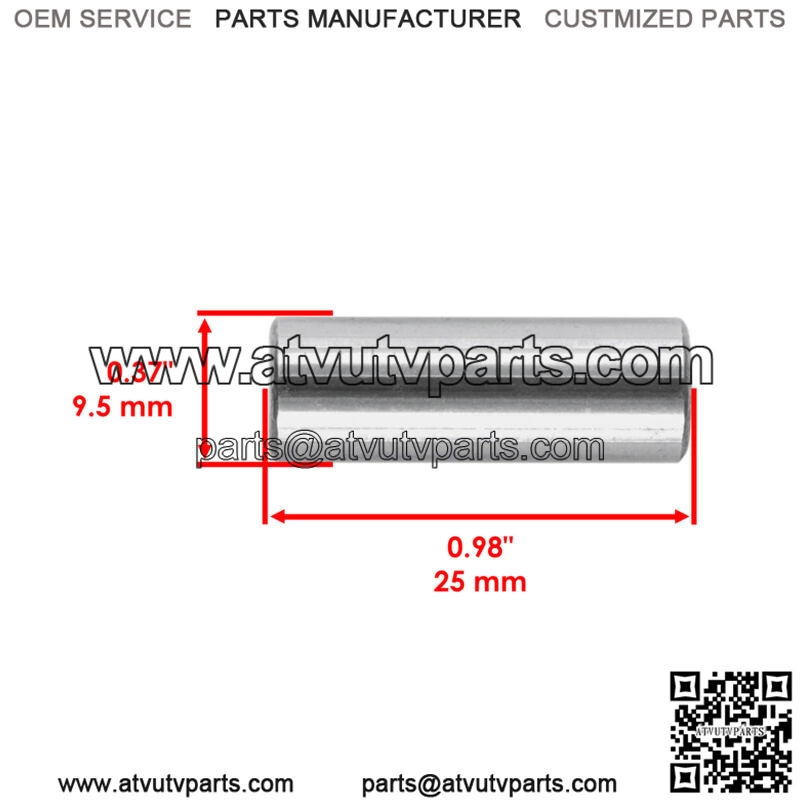

3 x Roller Pin : 5020422
Length : 25 mm – 0.98″
Outer Diameter : 9.5 mm – 0.37″
6 x Roller Washer : 5430945 5430702
5438247
Outer Diameter : 14.6 mm – 0.57″
Inner Diameter : 9.6 mm – 0.37″
Thickness : 1.5 mm – 0.059″

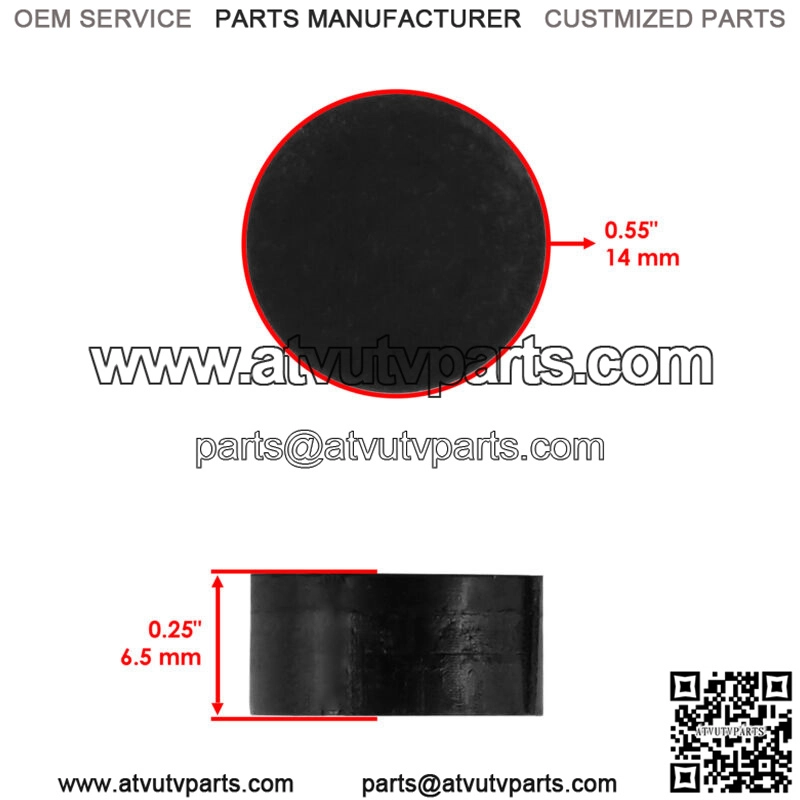

6 x Button : 5431936 5439254
Outer Diameter : 14 mm – 0.55″
Width : 6.5 mm – 0.25″

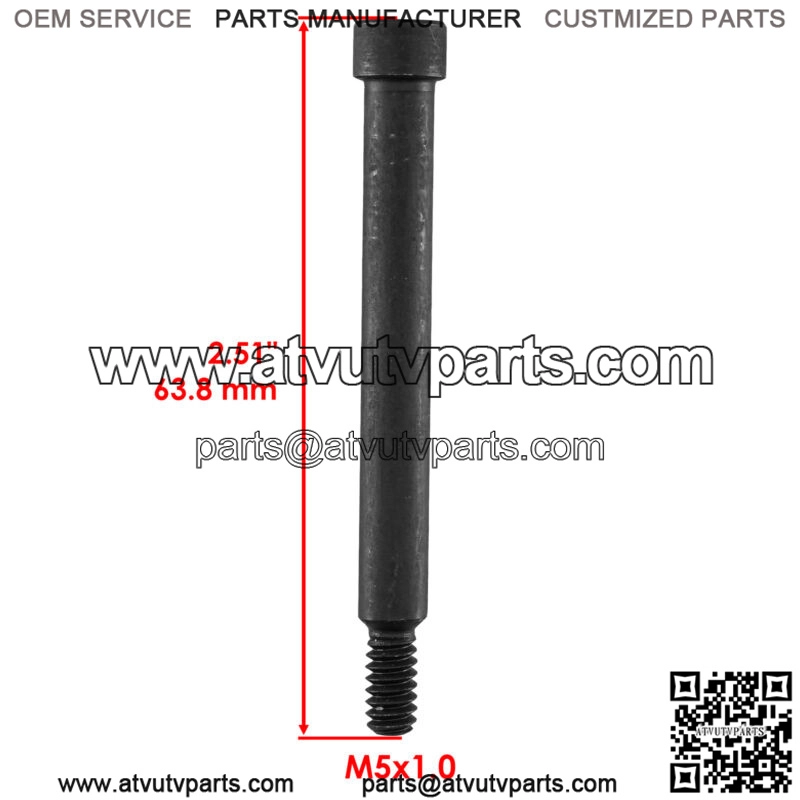

3 x Shoulder Bolt :
7512266
Length : 63.8 mm – 2.51″M5x1.0

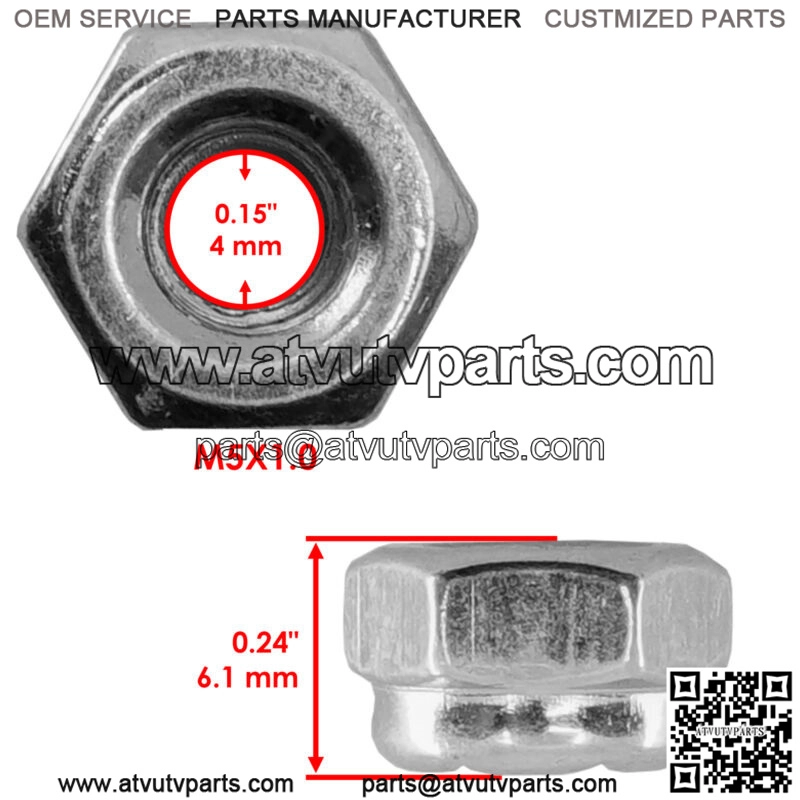

3 x Nut : 7541906 3235320
Inner Diameter : 4 mm – 0.15″
Height : 6.1 mm – 0.24″M5x1.0
1 x Bushing : 3576504 3514314
Outer Diameter : 19.4 mm – 0.76″
Inner Diameter : 11.09 mm – 0.43″
Width : 12.75 mm – 0.5″
1 x Bushing : 5430261
Outer Diameter : 33 mm – 1.29″
Inner Diameter : 29 mm – 1.14″
Width : 13 mm – 0.51″
1 x Spacer : 5210752
Outer Diameter : 44.35 mm – 0.17″
Inner Diameter : 34 mm – 1.33″
Thickness : 0.6 mm – 0.023″
1 x Spacer : 5242981
Outer Diameter : 44.35 mm – 0.17″
Inner Diameter : 34 mm – 1.33″
Thickness : 0.7 mm – 0.027″
1 x Bearing Cover : 3576510
Outer Diameter : 33 mm – 1.29″
Inner Diameter : 29 mm – 1.14″
Height : 13 mm – 0.51″
