1323317 Primary Clutch Repair Kit For Polaris Ranger 1000 XP 2017 (For: Polaris)
1323317 Primary Clutch Repair Kit For Polaris Ranger 1000 XP 2017 (For: Polaris) - Image 2
1323317 Primary Clutch Repair Kit For Polaris Ranger 1000 XP 2017 (For: Polaris) - Image 3
1323317 Primary Clutch Repair Kit For Polaris Ranger 1000 XP 2017 (For: Polaris) - Image 4
1323317 Primary Clutch Repair Kit For Polaris Ranger 1000 XP 2017 (For: Polaris) - Image 5

1323317 Primary Clutch Repair Kit For Polaris Ranger 1000 XP 2017 (For: Polaris)

SKU LHQPJ.07046 27547498 , 7541906 , 3235320 , 7512266 , 5438247, 5430702 Category Tag
SPREAD THE LOVE

Description

Premium Quality Replacement PartWe strongly suggest comparing the posted picture to your faulty unit!

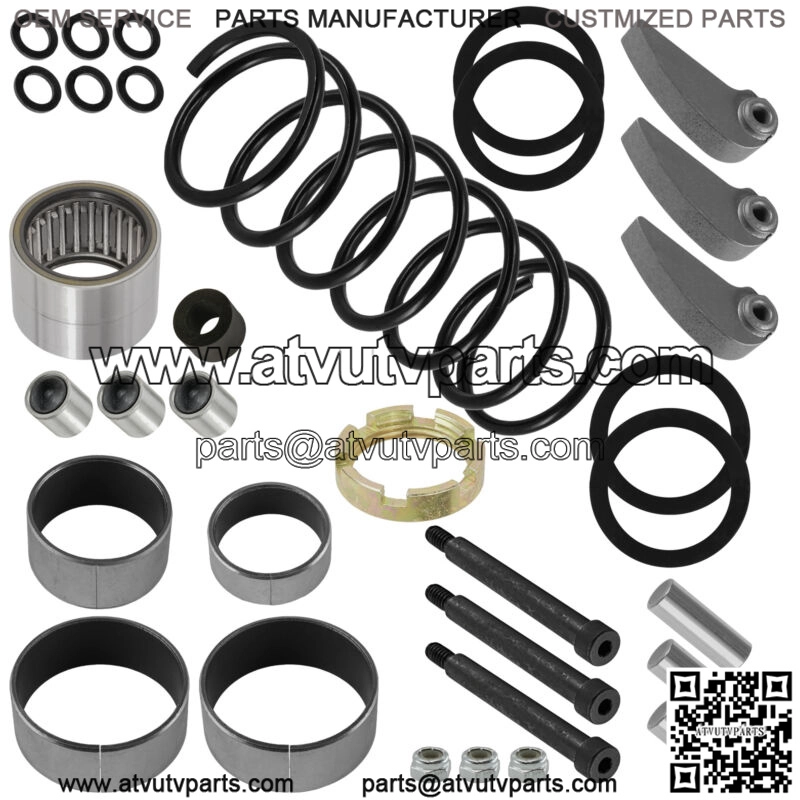

Complete Primary Clutch Repair Kit
1323317
For Polaris Models:Ranger 1000 XP 2017 All Options
Order include :
3x

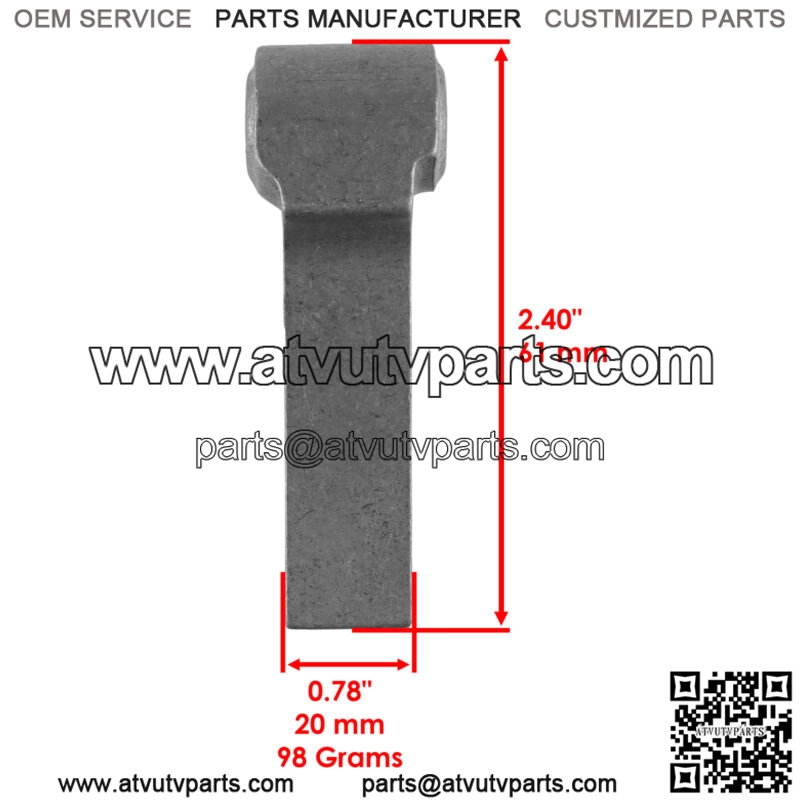

Clutch Weight
: 5140604Height : 61mmWidth : 20mmWeight : 98 Grams

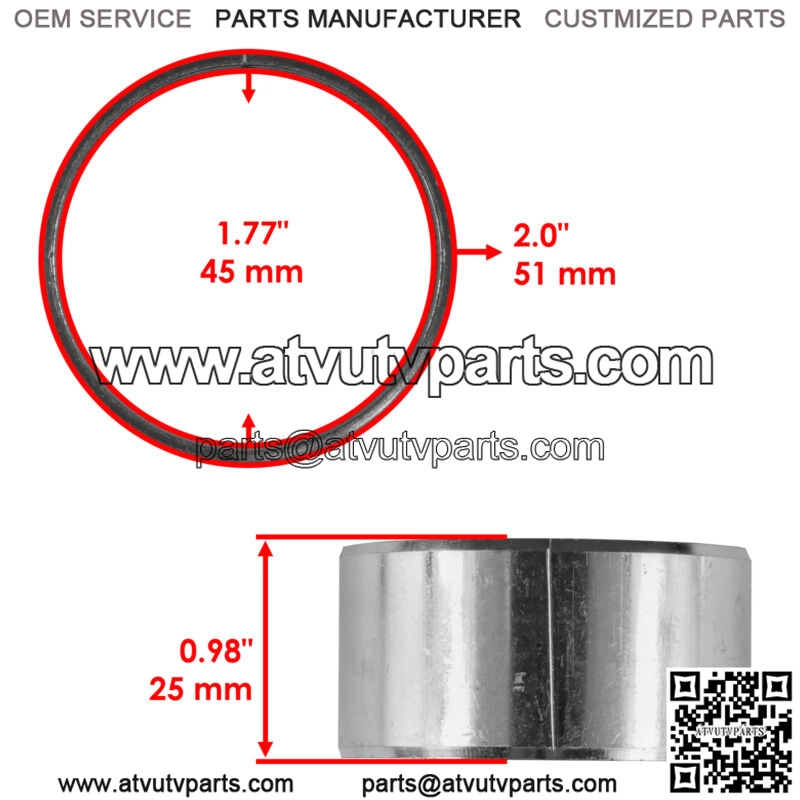

1x Bushing :
3514492Inner Diameter : 45mmOuter Diameter : 51mmWidth : 25mm

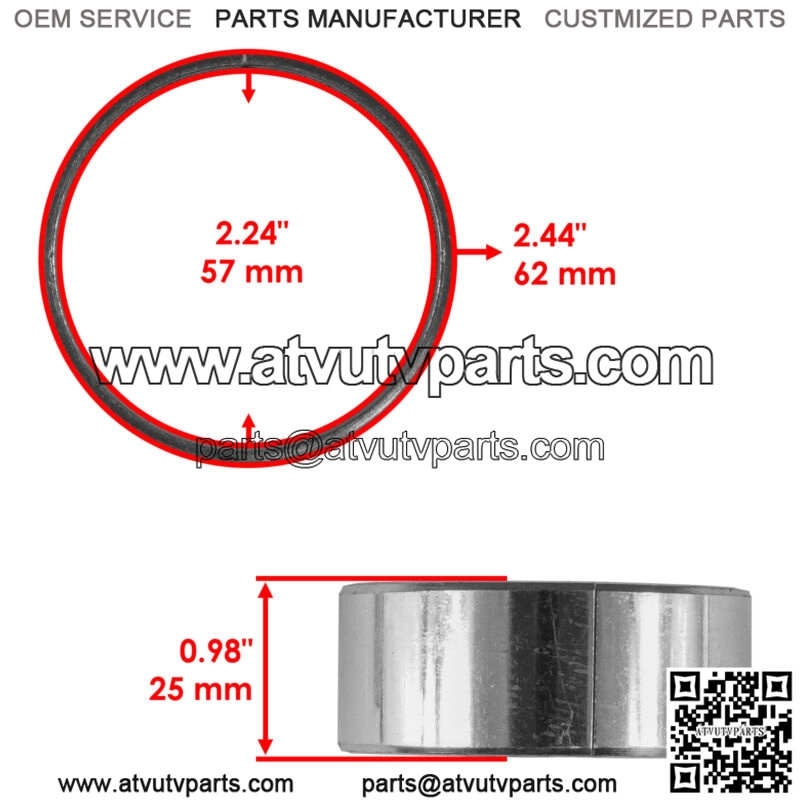

2x Bushing :
3585712Inner Diameter : 57mmOuter Diameter : 62mmWidth : 25mm

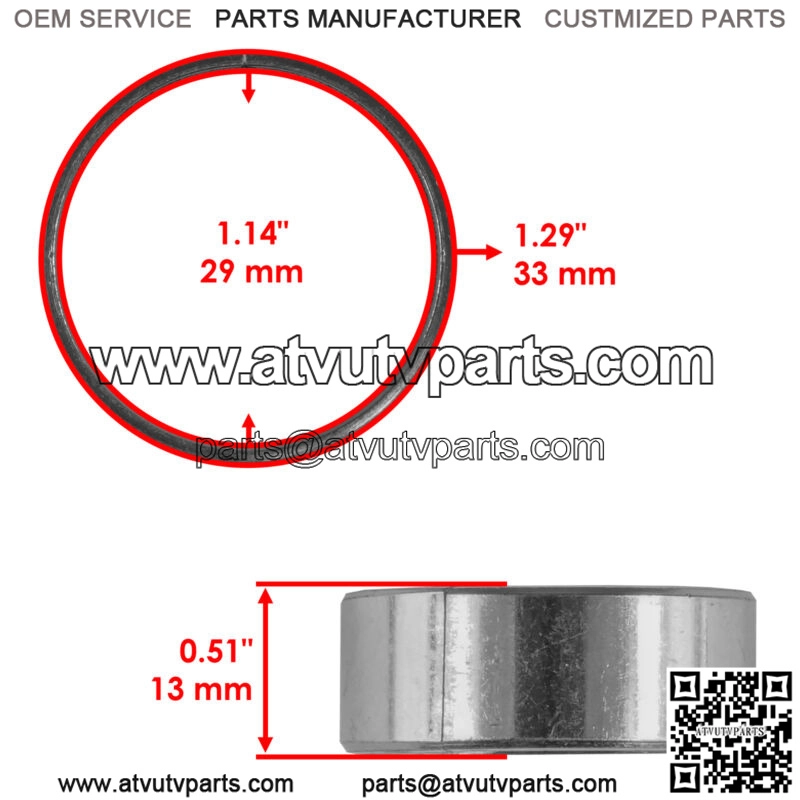

1x Bushing :
3576510Inner Diameter : 29mmOuter Diameter : 33mmWidth : 13mm
3x Bushing :
1321622 Inner Diameter : 9.5mmOuter Diameter : 14.3mmWidth : 14mm
1x Bushing :
5430261Inner Diameter : 11.2mmOuter Diameter : 19.5mmWidth : 12.8mm
1x Needle Bearing :
3514609
1x Nut :
7547498Inner Diameter : 29.7mmWidth : 9mm
3x Nut :
7541906, 3235320Inner Diameter : 4mmWidth : 6.1mmThread size : M5x1.0
3x Bolt :
7512266Length : 63.8mm
6x Washer :
5438247, 5430702, 5430945
2x Washer :
7556335Inner Diameter : 34mmOuter Diameter : 43mmThickness : 1.1mm
2x Washer :
5438963Inner Diameter : 28.7mmOuter Diameter : 38mmThickness : 1.1mm
1x Clutch Spring :
7044655Height : 132.5mmWidth : 50mmCoil Width : 4.4mm
3x Clutch Roller :
5020422Width : 9.5mmLength : 25mm
**
