1543326 5020826 7542439 7542453 Rear A Arm Bushing Kit For Polaris
1543326 5020826 7542439 7542453 Rear A Arm Bushing Kit For Polaris - Image 2
1543326 5020826 7542439 7542453 Rear A Arm Bushing Kit For Polaris - Image 3
1543326 5020826 7542439 7542453 Rear A Arm Bushing Kit For Polaris - Image 4
1543326 5020826 7542439 7542453 Rear A Arm Bushing Kit For Polaris - Image 5

1543326 5020826 7542439 7542453 Rear A Arm Bushing Kit For Polaris

SKU ChT.04545 5020826 1543326 7542439 7542453, 1017747-067 1017748-067 5135563 Category Tags , , , ,
SPREAD THE LOVE

Description

Premium QualityReplacement Part
Rear Upper Inner Outer Left & Right A Arm Bushing Kit
For Polaris Models:
Sportsman 450 HO 4×4 2016-2020
Sportsman 570 EFI 2016-2020
Sportsman Touring 570 EPS 2018-2023
Sportsman X2 570 EPS 2016-2021
Sportsman 570 6×6 2021-2023
Sportsman SP 570 Eps 2016-2020
Sportsman SP 570 Touring 2016-2020

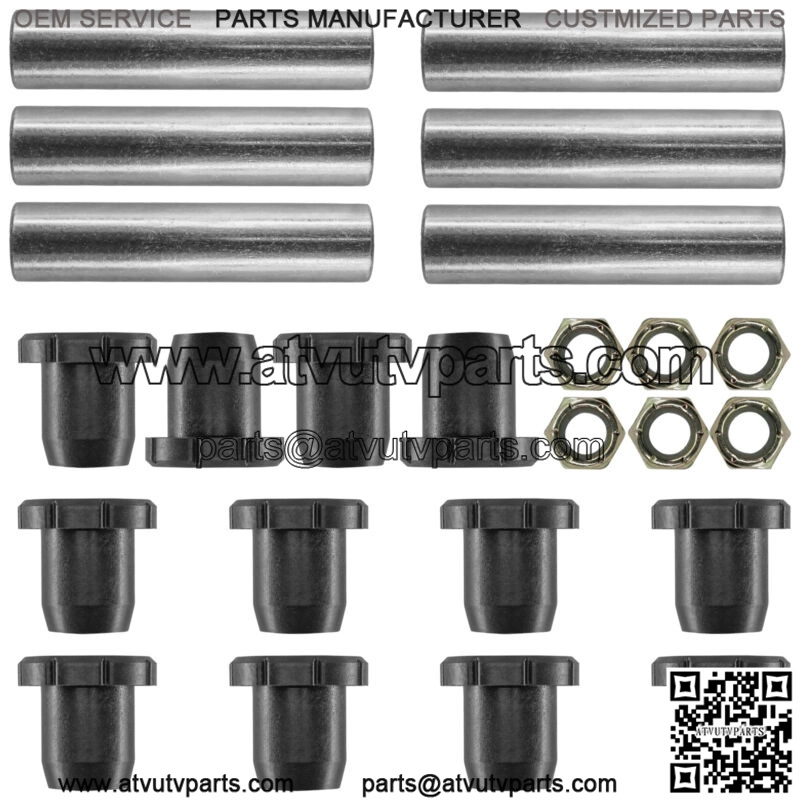

Order Includes:

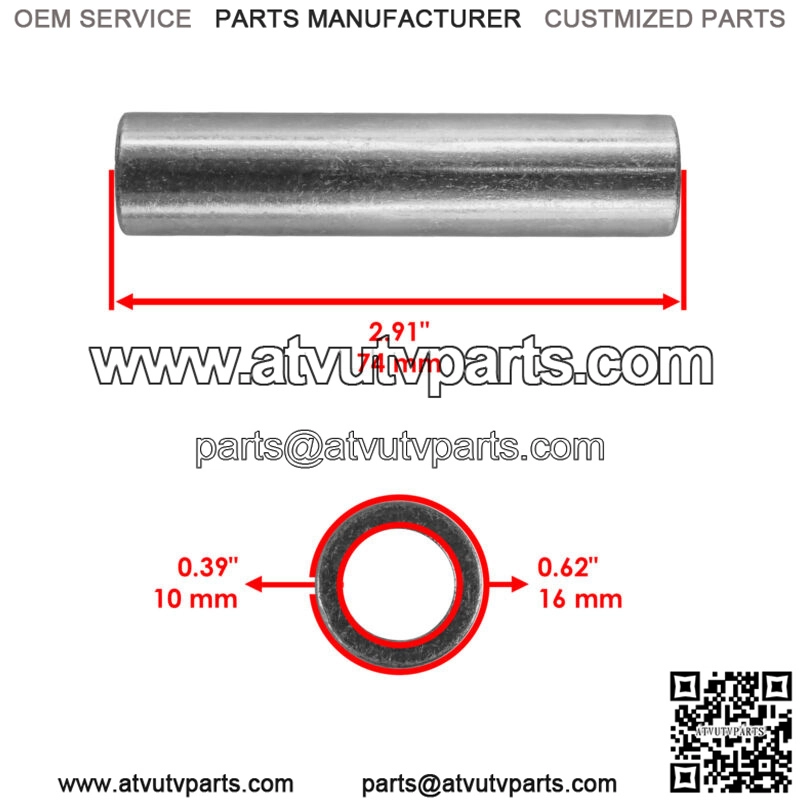

6 x Pivot Shaft: 5020826
Length: 74mm
Inner Diameter: 10mm
Outer Diameter: 16mm

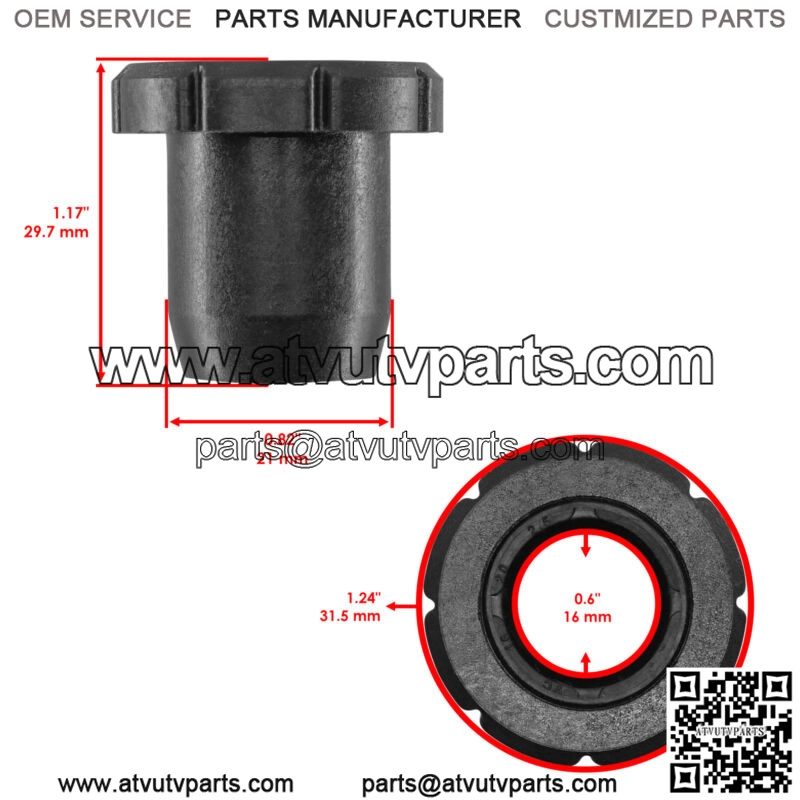

12 x Bushing: 1543326
Length: 29 7mm
Inner Diameter: 16 mm
Head Diameter: 31 5mm
Tube Diameter: 21mm

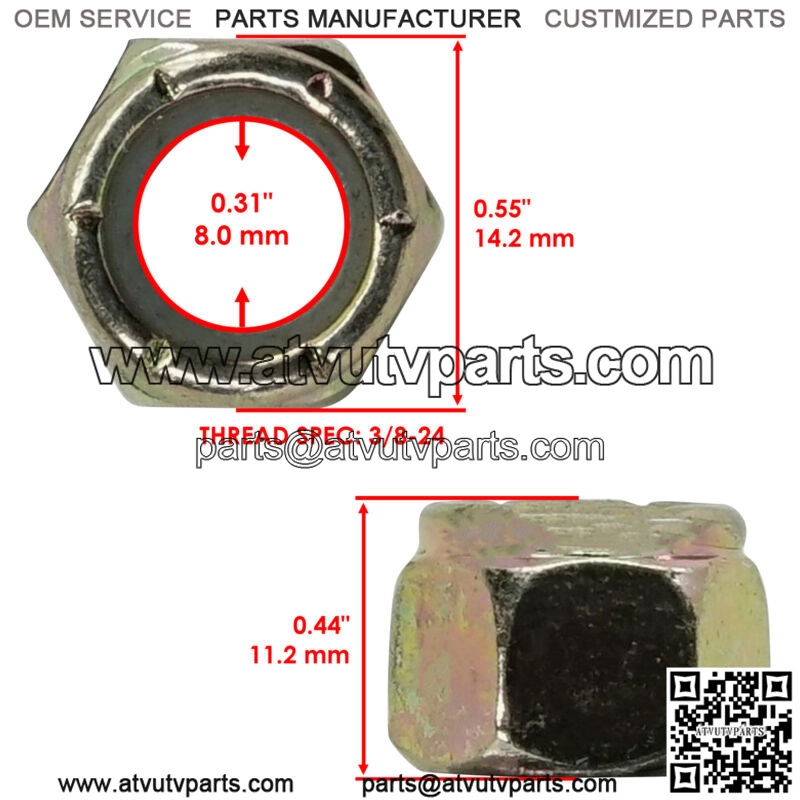

6 x Nylock Nut : 7542439 7542453
Width: 11.2mm
Inner Diameter: 8 mm
Outer Diameter: 14.2 mm
Rear Upper A Arm Part Number
Left: 1017747-067 Right: 1017748-067
Bearing Carrier: 5135563
