Premium Quality Replacement Part
SPINDLE BLADE MULCHING PULLEY BELT REBUILD KIT
Compatible with Following CRAFTSMAN Models:GTH2548 XPA XPB 48″
Spindle Specs:
5-29/32″ overall
Grease fitting on thread end.
NOTE:
Mounting holes do not have thread.Power tool
is needed to install the bolts.It is designed to withstand the vibration.
Spindle Part Numbers:
174356
174358
532174358
587125201
532174356
587125201
539107515
285-108
82-015
Blade Specs:
Width 2.5″
Length 16-3/8″
Thickness 0.203″
Center Hole 5 Point Star
Deck Size 48″ Cut
Blade Part Numbers:
532180054
532173920
539107519
Spindle Pulley Specs:
ID: .640 ” DOUBLE HEX
OD: 5 1/8 ”
Spindle Pulley Part Numbers:
129861
173436
153535
177865
532129861
532173436
Idler Pulley Specs:
OD 4″
ID 3/8″
Height 1 7/16″
Idler Pulley Part Numbers:
532177968
532193197
177968
193197
280240
Idler Pulley Specs:
OD 4-1/2″
ID 3/8″
Idler Pulley Part Numbers:
532175820
539107620
175820
107620
280239
Idler Pulley Specs:
OD 4-1/2″
ID 3/8″
Overall Height 1 3/16″
Idler Pulley Part Numbers:
532193195
193195
184058
189993
Secondary Belt Specs:
Width 5/8″
Length 89″
Secondary Deck Belt Part Numbers:
33908
532180808

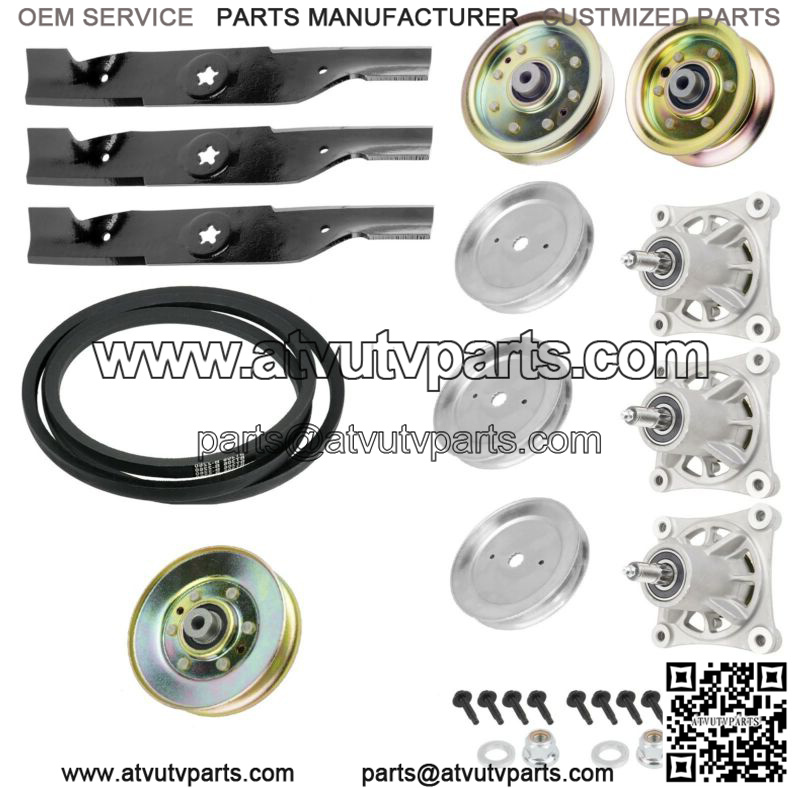

Order Includes:
3x Spindle Assemblies3x Spindle Pulleys3x Blades3x Idler Pulleys1 x Belts
