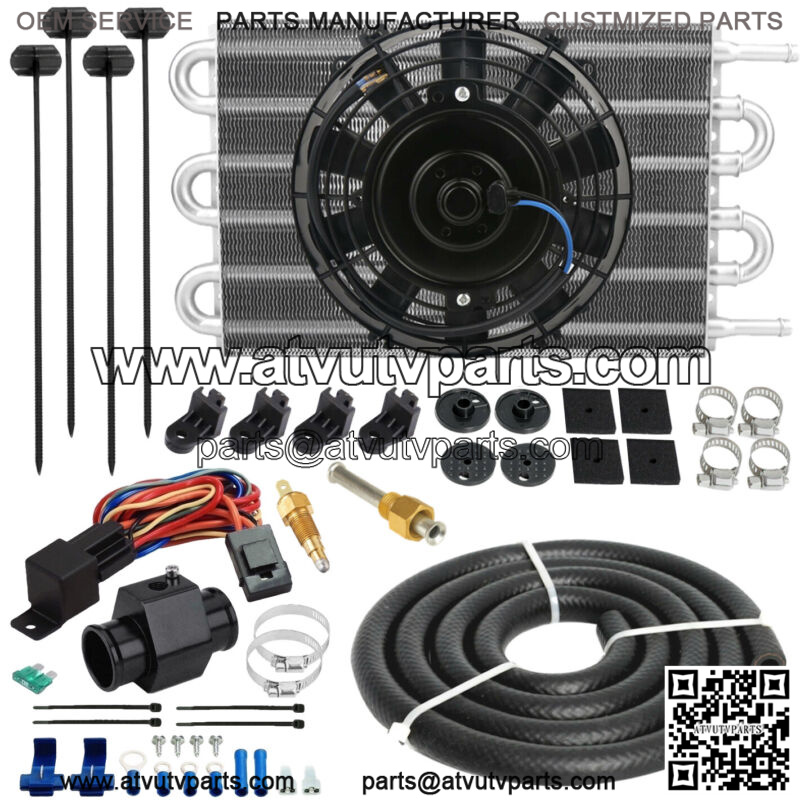

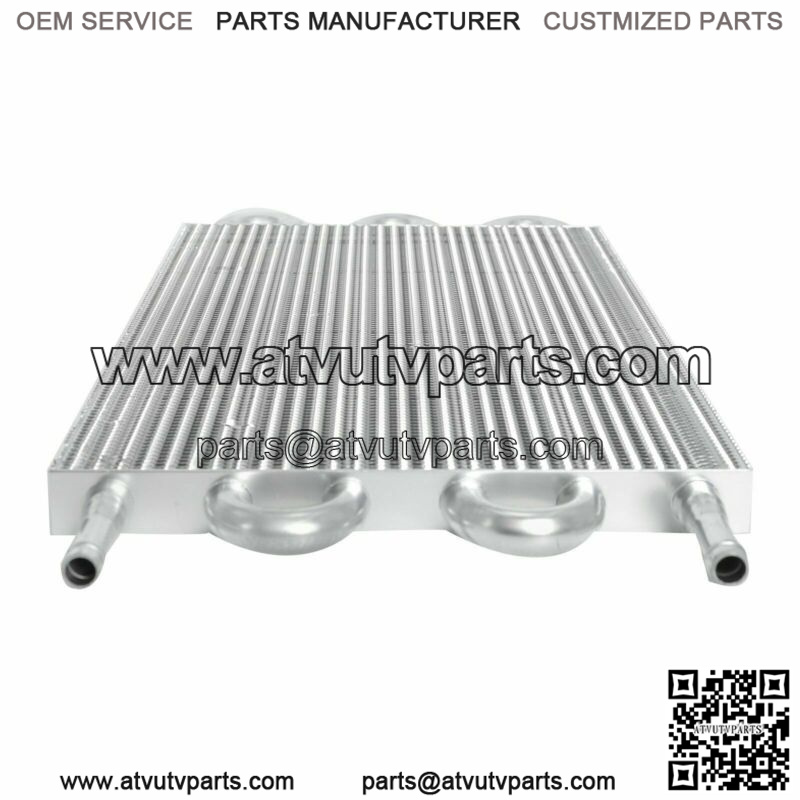

Fluid Cooler:
Universal 6 row tube and fin aluminum light duty transmission cooler kit.
Extend transmission life by preventing heat-related transmission failures.
Perfect for high-stressed smaller and mid-size truck auto transmissions.
High efficiency turbulation and ultrasonically soldered for the best reliability.
Dimensions: 0.75″ x 7.5″ x 15.875″ with 3/8″ barb inlets, GVW 15500 lbs.

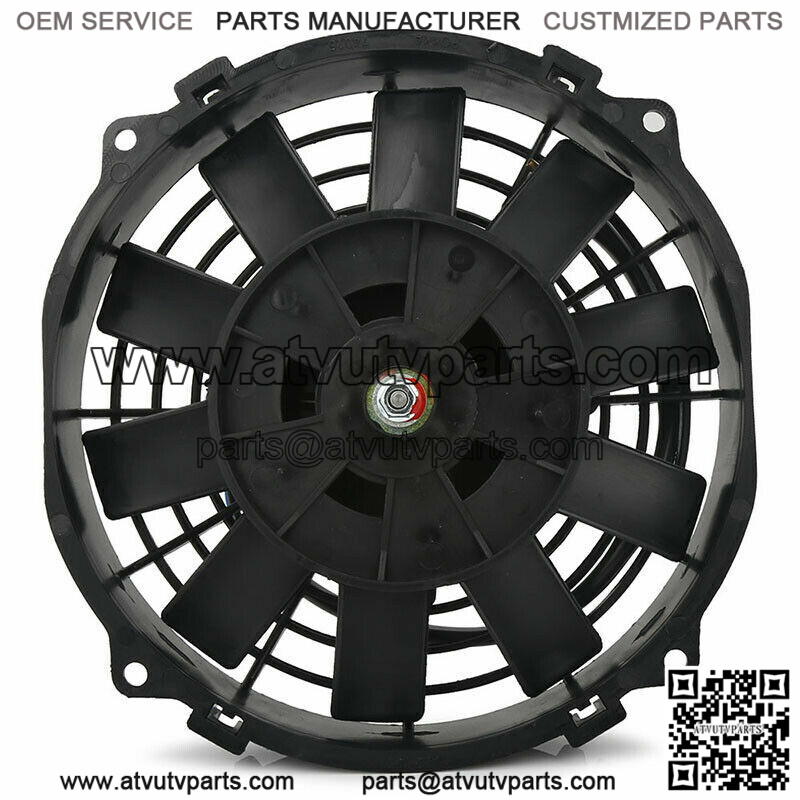

Electric Fan:
Universal 12 volt high performance 6″ inch small electric cooling fan.
Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.
Configured as an air puller to be on the inside and pull air through.
Includes mounting bracket feet and complete install fin tie strap kit.
Measures 7.2″ x 7″ x 2.4″ thickness at center and slim 1.4″ at edge.

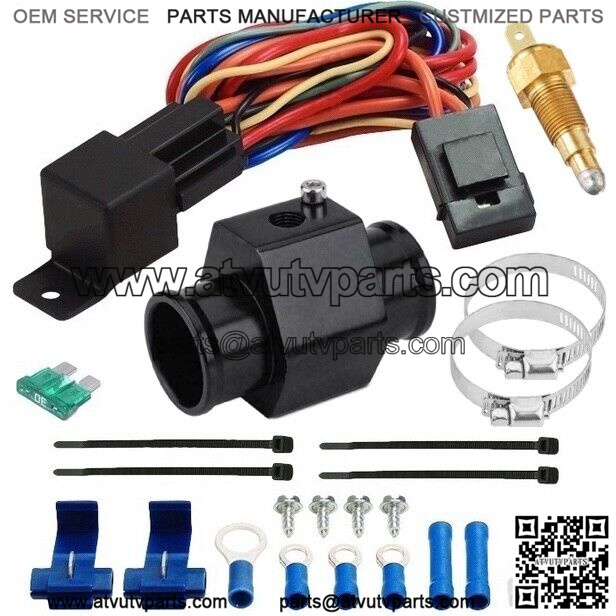

Wiring Kit:
Universal automotive electric fan 5-pin 40A relay switch harness kit.
14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
Maximum 30 amp continuous draw with 30A in-line fuse protection.
A/C override or manual toggle switch wire built directly into harness.
Installation instructions, wiring diagram and components included.

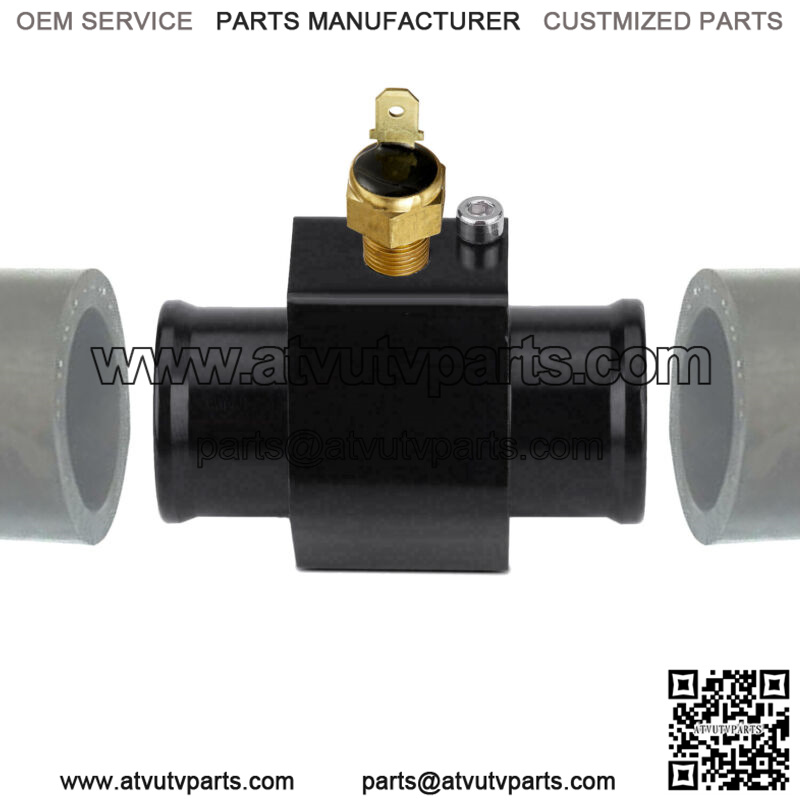

Fitting:
38mm OD radiator hose electric fan thermostat temperature sensor.
Anodized aluminum in-line fitting adapter in various diameter sizes.
Preset to ground fan at 180’F turn-on and 165’F turn-off temperature.
Single pin 1/8″ inch NPT brass thread-in probe grounding switch.
Measures temp of any liquid including oil, water and coolant fluid.
