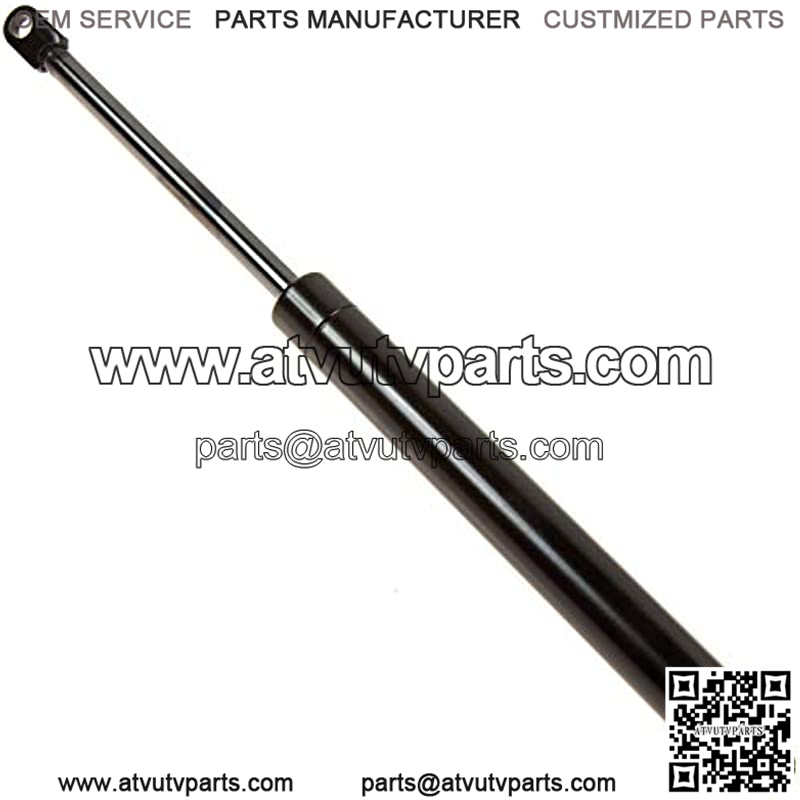

Manufactured by Factory Spec Includes everything pictured Replaces OEM# 2506-194 Measurements EXTENDED LENGTH = 13.19″ (335mm) CLOSED LENGTH = 8.35″ (212mm) STROKE = 4.84″ (123.00mm) SHAFT DIAMETER = 0.39″ (10mm) TUBE DIAMETER = 0.87″ (22.1mm) DAMPING FORCE = 90.38942 lbs (41kgs) TOP & BOTTOM EYELET = 8.3mm OD & 5mm width Made in Taiwan Replaces the dump box shock on the following models: 2014-2015 500 Prowler HDX 4×4 2014 500 Prowler HDX LTD 4×4 2014/2016-2017 500 Prowler HDX XT 4×4 2010-2015 550 Prowler XT 4×4 2007 650 H1 4×4 TBX 2009 650 4×4 TBX 2007-2008 650 H1 Prowler 4×4 2007-2008 650 H1 Prowler XT 4×4 Auto 2009 650 Prowler XT 4×4 Auto 2010 700 H1 EFI 4×4 TBX 2011 700s H1 EFI TBX 2012 700 TBX GT 2013-2017 700 TBX 2016 700 TBX EPS SE 2016-2017 700 HDX XT 2017 700 HDX XT Crew 2018-2020 Textron 700 Alterra TBX EPS 2009 700 Prowler XT 4×4 2015-2017 700 Prowler XT 2008 700 H1 Prowler XTX 4×4 2009-2010 700 Prowler XTX 4×4 2011 700s Prowler XTX 4×4 2012-2014 700 Prowler XTX 4×4 2011-2014 700 Prowler HDX 2015 700 Prowler HDX XT 2015-2017 1000 Prowler XT 2009-2010/2012-2014 1000 Prowler XTZ 4×4 2009 1000 Prowler XTZ 4×4 Baja 2011 1000 H2 Prowler EFI XTZ
