Complete Rear Differential Kit For Yamaha Rhino 660 YXR660F 4X4 2004-2007

Categories
Product tags
air filter axle bearing belt bolt bracket brake brake cable brake disc brake disk brake pads carburetor car lamp car light centrifugal clutch clutch clutch cable clutch parts disc-brake disc brakes disk brake drive belt front fork gasket holder ignition coil ignition spark booster jump-spark coil Lamps latch Lift Kit Lights lowering kit protective cover shaft shock absorber spark coil sparking coil switch throttle cable tire tool tyre washer wheel hub
Complete Rear Differential Kit For Yamaha Rhino 660 YXR660F 4X4 2004-2007
Complete Rear Differential Kit For Yamaha Rhino 660 YXR660F 4X4 2004-2007 - Image 2
Complete Rear Differential Kit For Yamaha Rhino 660 YXR660F 4X4 2004-2007 - Image 3
Complete Rear Differential Kit For Yamaha Rhino 660 YXR660F 4X4 2004-2007 - Image 4

Complete Rear Differential Kit For Yamaha Rhino 660 YXR660F 4X4 2004-2007

SKU YQ.00571 Category Tags ,
SPREAD THE LOVE

Description

Complete Rear Differential Kit For Yamaha Rhino 660 YXR660F 4X4 2004-2007Fits Following Yamaha Models:Rhino 660 YXR660F 4X4 2004-2007Order Includes:

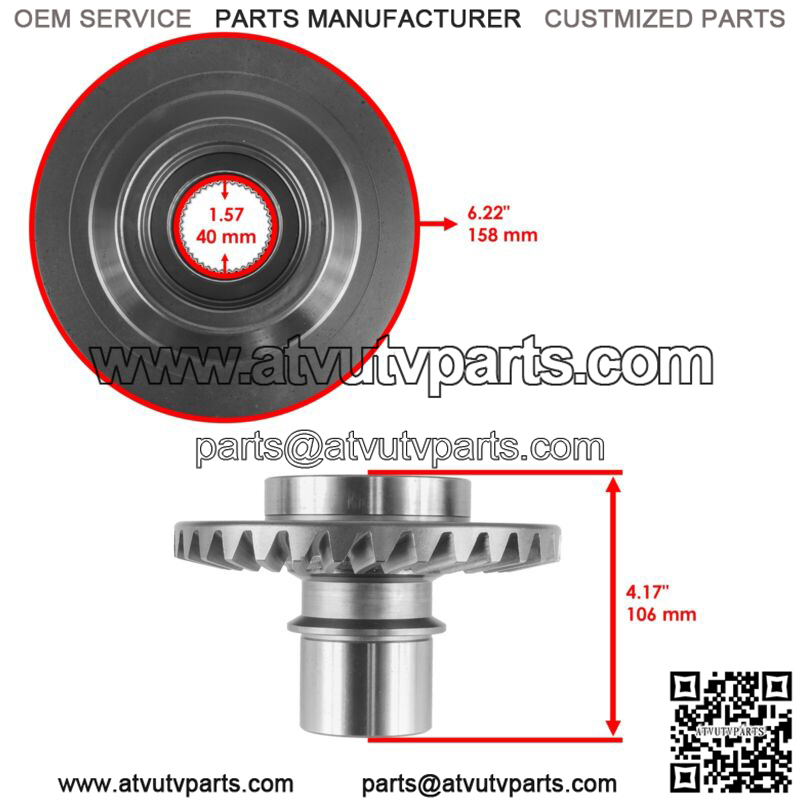

1x Differential Gear : 5UG-Y4612-00-00
Height : 106mm
Inner Diameter : 40mm
Outer Diameter : 158mm

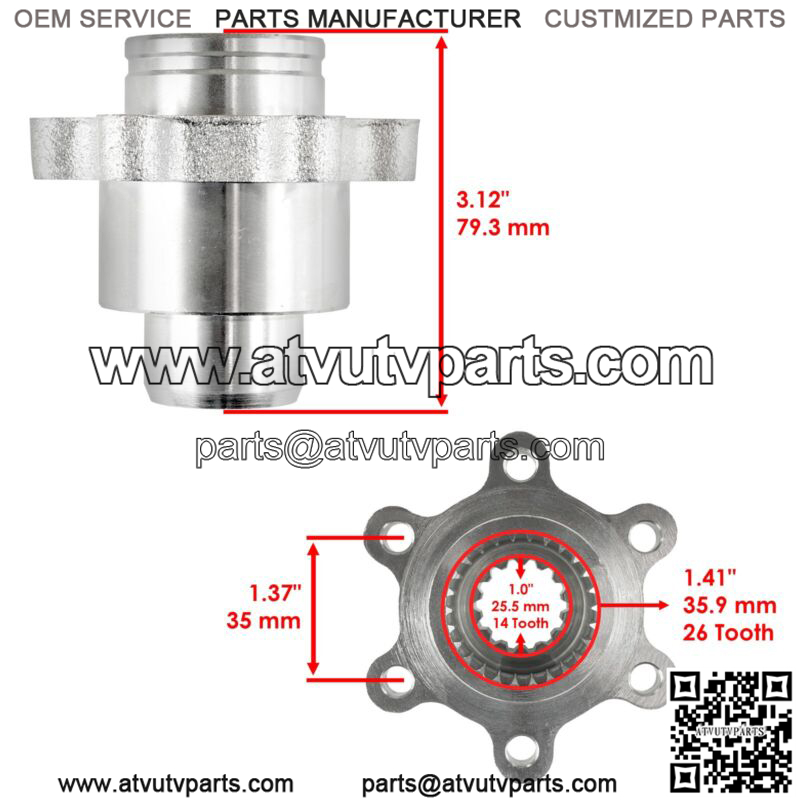

1x Differential Boss : 5UG-46212-00-00
Height : 79.3mm
Small Gear Diameter : 25.5mm | 14 Tooth
Big Gear Diameter : 35.9mm | 26 Tooth
1x Bearing 1 : 5KM-46102-00-00
1x Bearing 2 : 93306-30574-00 1XD-E142A-00-00
1x Bearing 3 : 93316-01701-00
1x Bearing 4 : 93317-85569-00
1x Oil seal 1 : 93102-35009-00
2x Oil Seal 2 : 93102-65008-00
1x O Ring 1 : 93210-19123-00
1x O Ring 2 : 93210-626A7-00, 93210-63514-00
1x O Ring 3 : 93211-54698-00

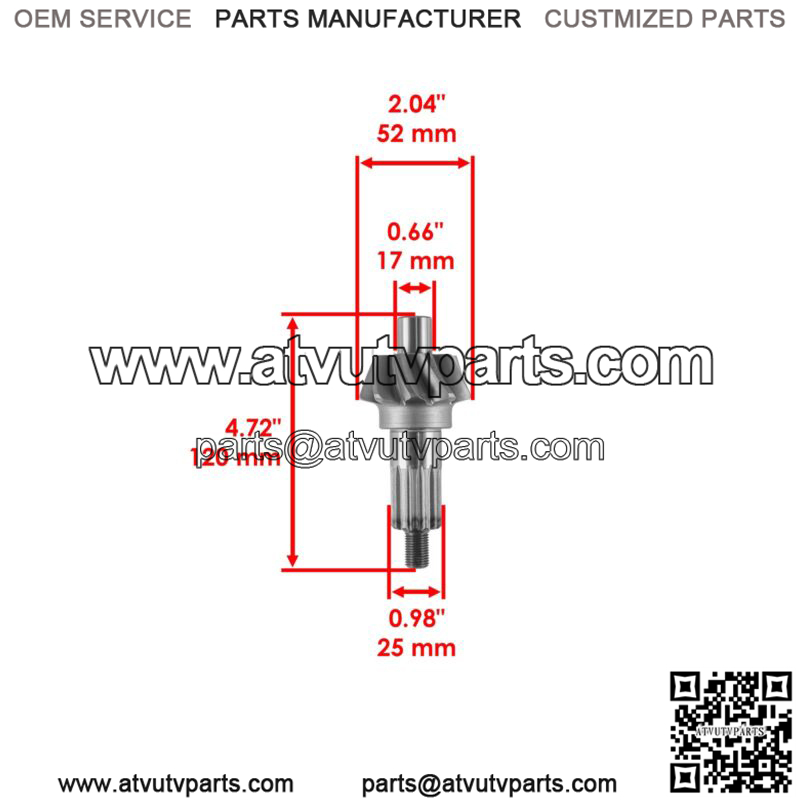

Note : Please Refer To Pictures For Exact Measurments

Fit Differential Part Number :
5UG-46101-01-00 5UG-46101-10-00 1RB-46101-00-00
**
