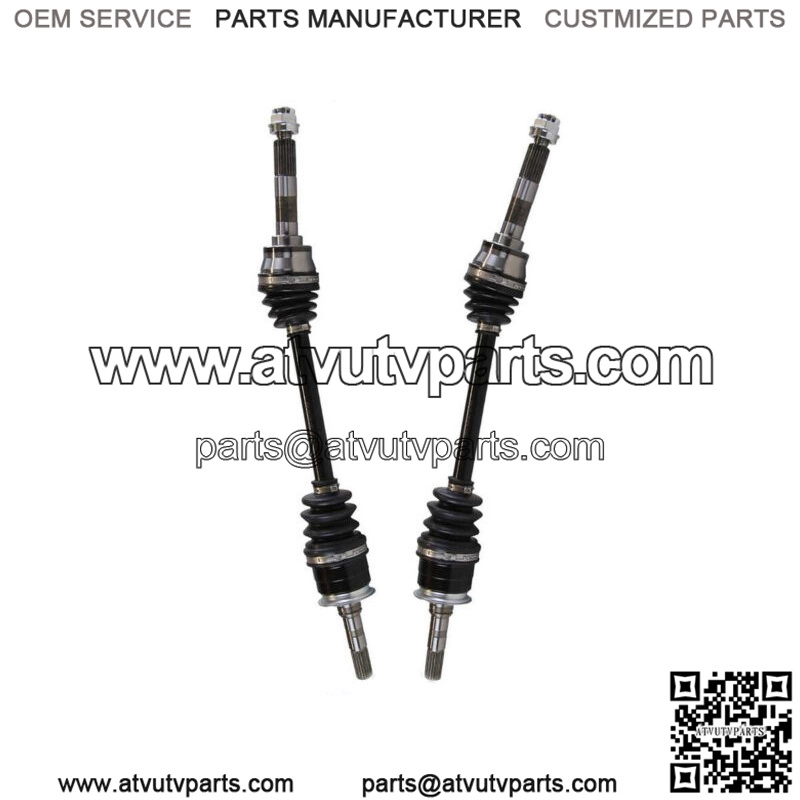

Front CV Axle Shafts Pair 2 for 2009-2019 2020 Kawasaki KAF620 Mule 4010 4×4
SPREAD THE LOVE
Description
Weight 16.5 lbs
Height 9.3 in
Width 9.3 in
Length 28.3 in
Transmission Type Automatic, Manual
Surface Finish Black Coating
Shaft Material 40CR
Overall Compressed Length 25.04 in / 636 mm
Output Shaft Connection Style Spline
Number of Outboard Splines 24 Teeth
Number of Inboard Splines 19 Teeth
Items Included N/A
ISO Specification ISO 16949
Input Shaft Connection Style Spline
Inboard Clip Included No
Hazardous Material No
Hardware Included No
Grease Type Molybdenum Disulfide Lithium Grease
Fitment Type direct replacement
Drive Type 4X4
Cotter Pin Included Yes
Boot Color Black
Axle Nut Thread Size M18 x 1.5
Axle Nut Locking Type Split Pin
Axle Nut Included Yes
Axle Nut Hex Size 1.06 in / 27 mm
ABS Ring Included No
