Front or Rear Inner A-Arm Bushing Kit for Polaris General 1000 EPS 2016-2022 (For: Polaris)
Front or Rear Inner A-Arm Bushing Kit for Polaris General 1000 EPS 2016-2022 (For: Polaris) - Image 2
Front or Rear Inner A-Arm Bushing Kit for Polaris General 1000 EPS 2016-2022 (For: Polaris) - Image 3
Front or Rear Inner A-Arm Bushing Kit for Polaris General 1000 EPS 2016-2022 (For: Polaris) - Image 4
Front or Rear Inner A-Arm Bushing Kit for Polaris General 1000 EPS 2016-2022 (For: Polaris) - Image 5

Front or Rear Inner A-Arm Bushing Kit for Polaris General 1000 EPS 2016-2022 (For: Polaris)

SKU ChT.04296 Category Tags , , , ,
SPREAD THE LOVE

Description

Premium Quality Replacement Part
Front Lower Upper or Rear Lower Inner A-Arm Bushing Kit
For Polaris Models:
General 1000 2016-2022
General 1000 EPS 2016 2017-2022
A-Arm Part Number:
Front Upper Left 1021418-133 1021418-458 1023061-458 1023223-647 1023223-458
Front Upper Right 1021419-133 1021419-458 1023062-458 1023224-647 1023224-458
Front Lower Left 1021416-133 1021416-458
Front Lower Right 1021417-133 1021417-458
Rear Lower Left 1021414-133 1021414-458 1021414-647
Rear Lower Right 1021415-133 1021415-458 1021415-647

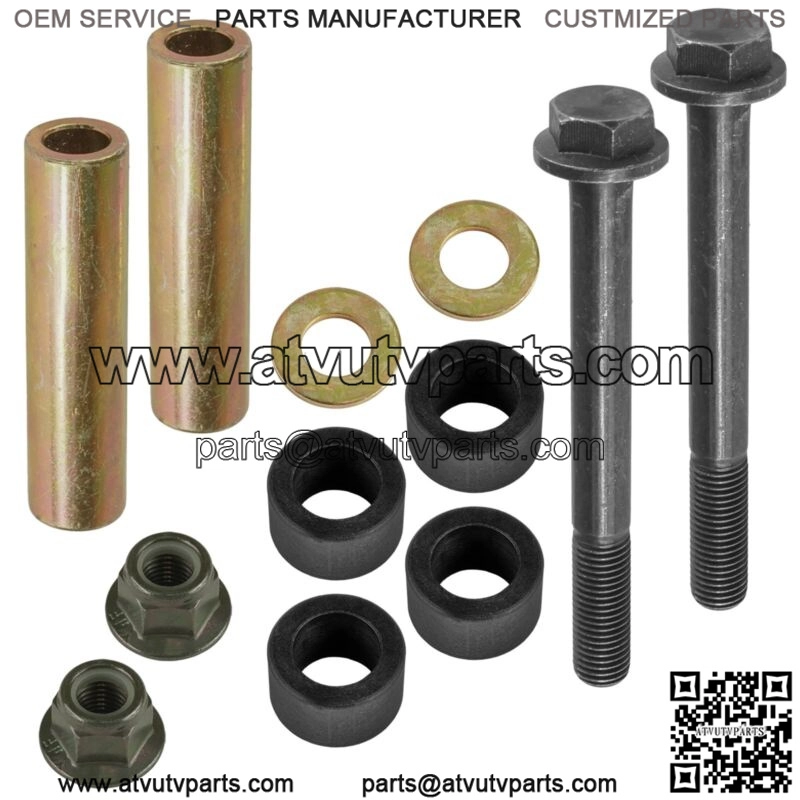

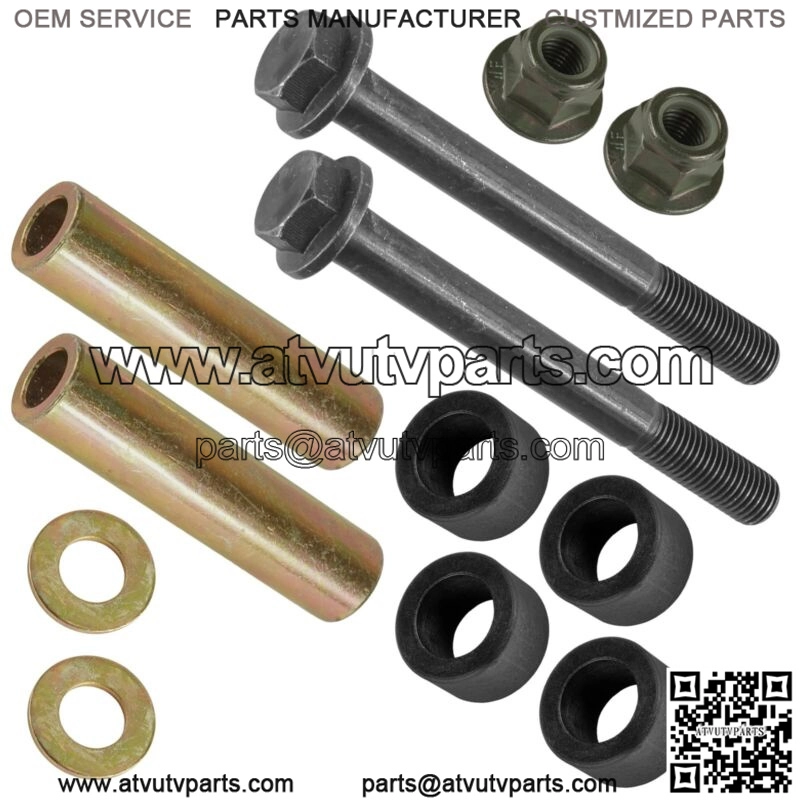

Order Includes:
2 x Pivot Shaft | 5139966
4 x Bushing | 5452233

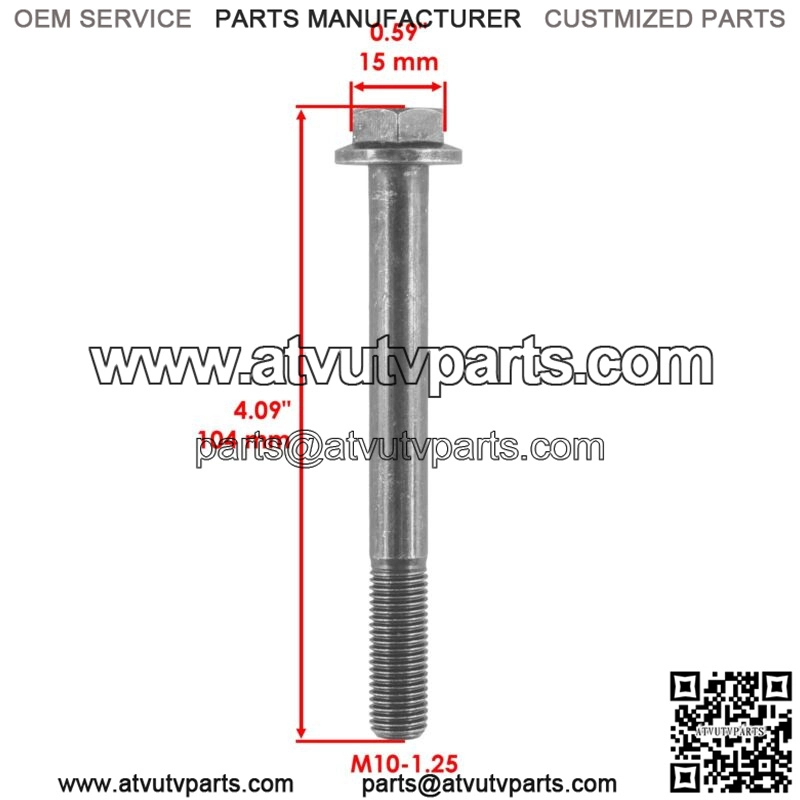

2 x Bolt | 7519043
2 x Nut | 7547333
2 x Washer | 7556153
Dimensions & Measurements :

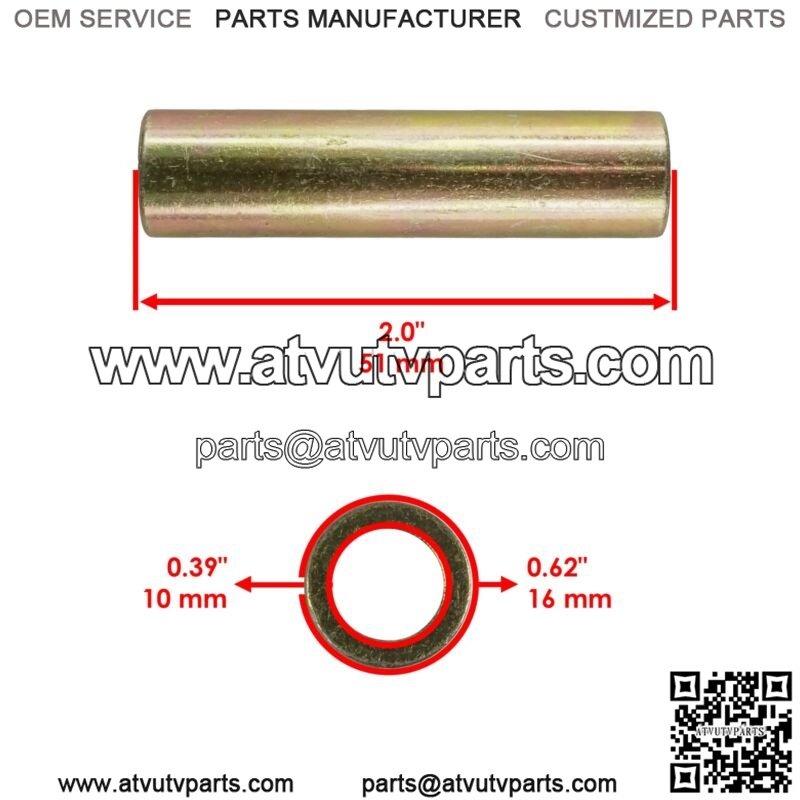

Pivot Shaft
Length:51mm
Inner Diameter:10mm
Outer Diameter:16mm
Bushing
Outer Diameter:26mm
Inner Diameter:16.5mm
Height:15.5mm

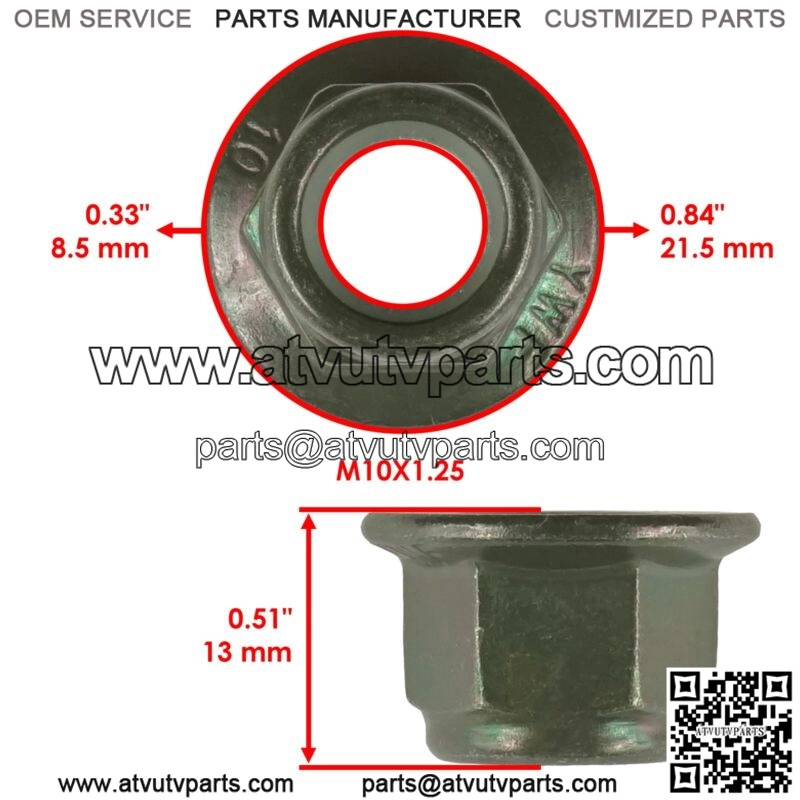

Nut
M10x1.25
Part Number :
Pivot Shaft | 5139966
Bushing | 5452233
Bolt | 7519043
Nut | 7547333
Washer | 7556153
**
