Premium Quality Replacement Part
Front Upper & Lower & Rear Upper Left & Right Control Arm Spiral Ring
Compatible with Polaris Models:
Front Upper & Lower Left & Right Control Arm Spiral Ring
RZR RS1 2018-2022
RZR XP Turbo S 2018-2020
RZR XP 4 Turbo S 2019-2020
RZR Turbo S 2021
RZR Turbo S4 2021
RZR Turbo R 2022
General 1000 Deluxe 2020
General 4 1000 Deluxe 2020
General XP 1000 2020-2023
General XP 4 1000 2020-2023
RZR PRO XP 2020-2024
RZR PRO XP 4 2020-2024
Front Lower Left & Right Control Arm Spiral Ring
Scrambler XP 1000 55″ 2020-2024
Scrambler 1000 55″ 2022-2024
Sportsman XP 1000 55″ 2020-2024
Sportsman 1000 55″ 2023-2024
RZR XP 1000 2024-2025
RZR XP 4 1000 2024-2025
Rear Upper Left & Right Control Arm Spiral Ring
Scrambler XP 1000 55″ 2020-2024
Scrambler 1000 55″ 2022-2024
Sportsman XP 1000 55″ 2020-2024
Sportsman 1000 55″ 2023-2024

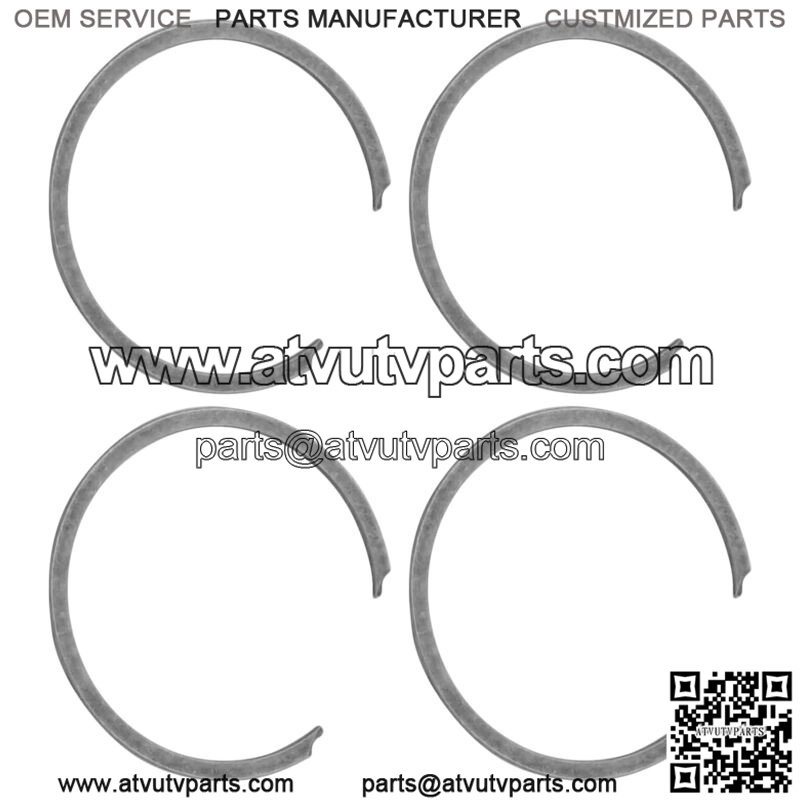

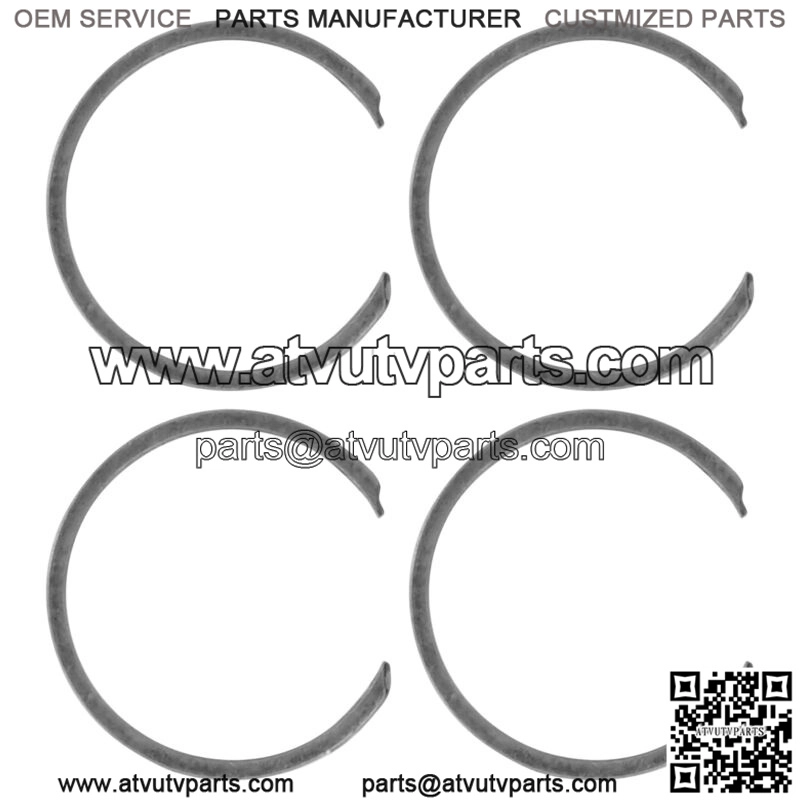

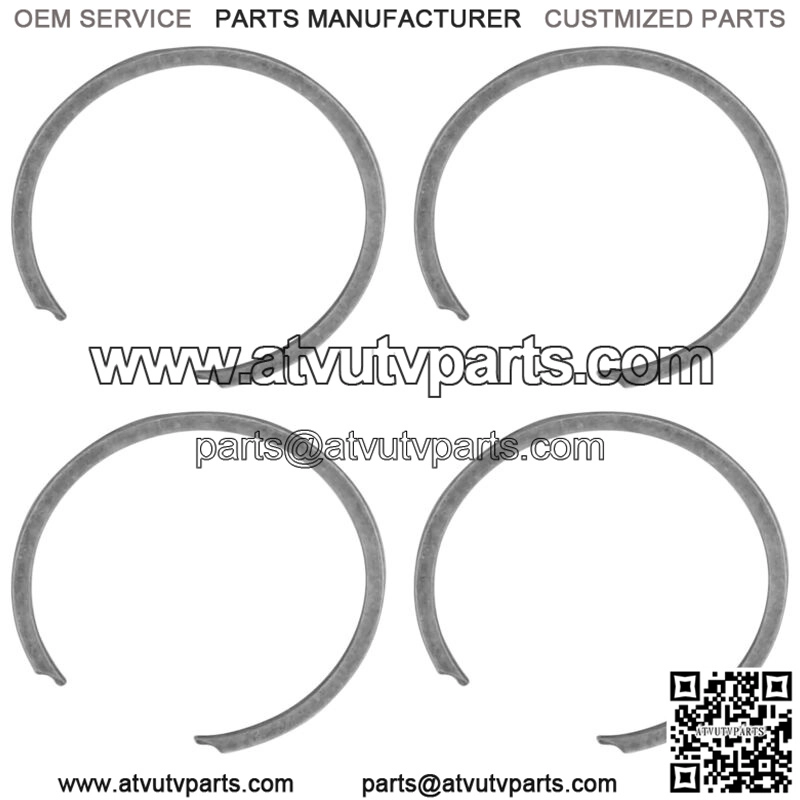

Order Includes:
4 x Spiral Ring: 7710869

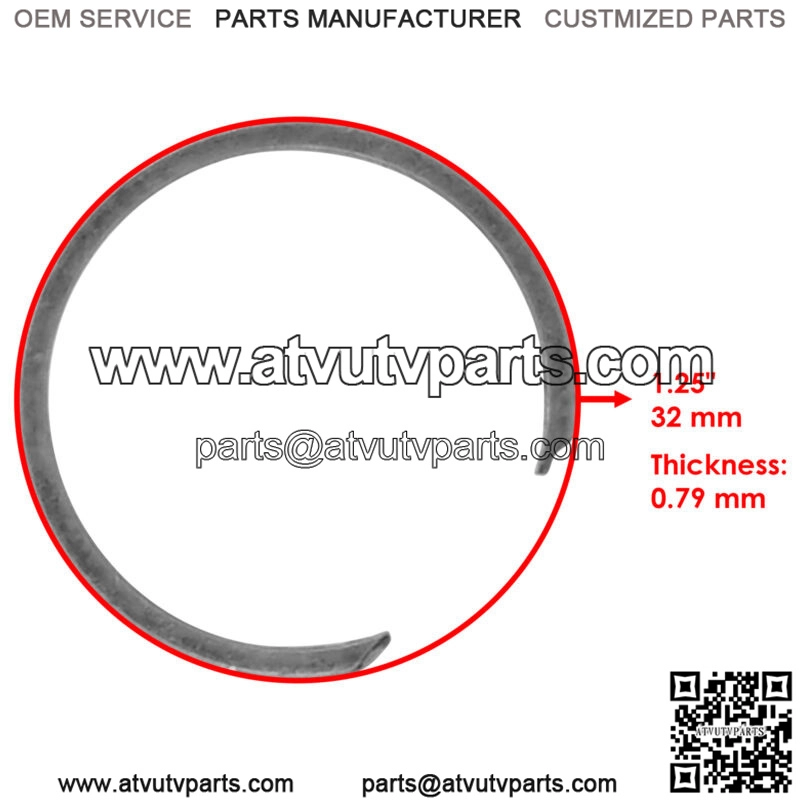

Outer Diameter: 32 mm – 1.25 in
Thickness: 0.79mm
Material: Steel
Front Upper Control Arm Part Number:
Left: 1025116-727, 1025116-804, 1025116-686, 1025116-705
1025116-863, 1025116-458, 1023167-293, 1025145-293, 1025145-737
1025145-630, 1544322-293, 1544322-458, 1544322-751, 1544322-647
1544322-707, 1544322-705, 1024460-458, 1023265-458
1027104-458 , 1544716-458 , 1025579-589, 1025579-458
1025579-630, 1025579-293, 1025579-402
Right: 1025117-727, 1025117-804, 1025117-686, 1025117-705
1025117-863, 1025117-458, 1023168-293, 1025146-293, 1025146-737
1025146-630, 1544323-293, 1544323-458, 1544323-751, 1544323-647
1544323-707, 1544323-705, 1024461-458, 1023266-458
1027105-458, 1544717-458, 1025580-589, 1025580-458
1025580-630, 1025580-293, 1025580-402
Fornt Lower Control Arm Part Number:
Left: 1025114-727, 1025114-804, 1025114-686, 1025114-705
1025114-863, 1025114-458, 1023169-293, 1025147-293, 1025147-737
1025147-630, 1544336-293, 1544336-458, 1544336-751, 1544336-647
1544336-707, 1544336-705, 1024383-458, 1023267-458
1025560-458, 1544712-458, 1023399-589, 1023399-458
1023399-630, 1023399-293, 1023399-402
Right: 1025115-727, 1025115-804, 1025115-686, 1025115-705
1025115-863, 1025115-458, 1023170-293, 1025148-293, 1025148-737
1025148-630, 1544336-293, 1544336-458, 1544336-751, 1544336-647
1544336-707, 1544336-705, 1024384-458, 1023268-458
1025561-458, 1544713-458, 1023400-589, 1023400-458
1023400-630, 1023400-293, 1023400-402
Rear Upper Control Arm Part Number:
Lef & Right: 1023393-589, 1023393-630, 1023393-293
1023393-458, 1023393-402
Rear Lower Control Arm Part Number:
Left: 1023395-589, 1023395-458, 1023395-630
1023395-293, 1025643-402
Right: 1023396-589, 1023396-458, 1023396-630
1023396-293, 1025644-402
