Premium Quality Replacement Part
Front Upper Lower Rear Lower Inner A-Arm Bushing KitFor Polaris Models:
RZR XP 1000 2017-2023
A-Arm Part Number:
RZR XP 1000 2017
Front Upper Left 1021727-293 1021727-630 1021727-689 1021727-385 1021727-458
Front Upper Right 1021728-293 1021728-630 1021728-689 1021728-385
Front Lower Left 1021480-293 1021480-630 1021482-689 1021482-458 1021480-385
Front Lower Right 1021481-293 1021481-630 1021483-689 1021481-385 1021481-689 1021483-458
RZR XP 1000 2018
Front Upper Left 1023526-458 1023530-293 1023530-458 1023530-630 1023530-385
Front Upper Right 1023527-458 1023531-293 1023531-458 1023531-630 1023531-385
Front Lower Left 1021480-293 1021480-458 1021480-630 1021482-458 1021480-385 1021482-385
Front Lower Right 1021481-293 1021481-458 1021481-630 1021483-458 1021481-385 1021483-385
RZR XP 1000 2019
Front Upper Left 1023526-385
Front Upper Right 1023527-385
Front Lower Left 1021480-385
Front Lower Right 1021481-385
RZR XP 1000 2020
Front Upper Left 1025143-293
Front Upper Right 1025144-293
Front Lower Left 102513s9-293
Front Lower Right 1025140-293
RZR XP 1000 2021
Front Upper Left 1025143-458 1025143-727 1025143-804
Front Upper Right 1025144-458 1025144-727 1025144-804
Front Lower Left 1025139-458 1025139-727 1025139-804
Front Lower Right 1025140-458 1025140-727 1025140-804
RZR XP 1000 2022
Front Upper Left 1022806-728
Front Upper Right 1022807-728
Front Lower Left 1024247-728
Front Lower Right 1024248-728
RZR XP 1000 2023
Front Upper Left 1022806-458
Front Upper Right 1022807-458
Front Lower Left 1024247-458

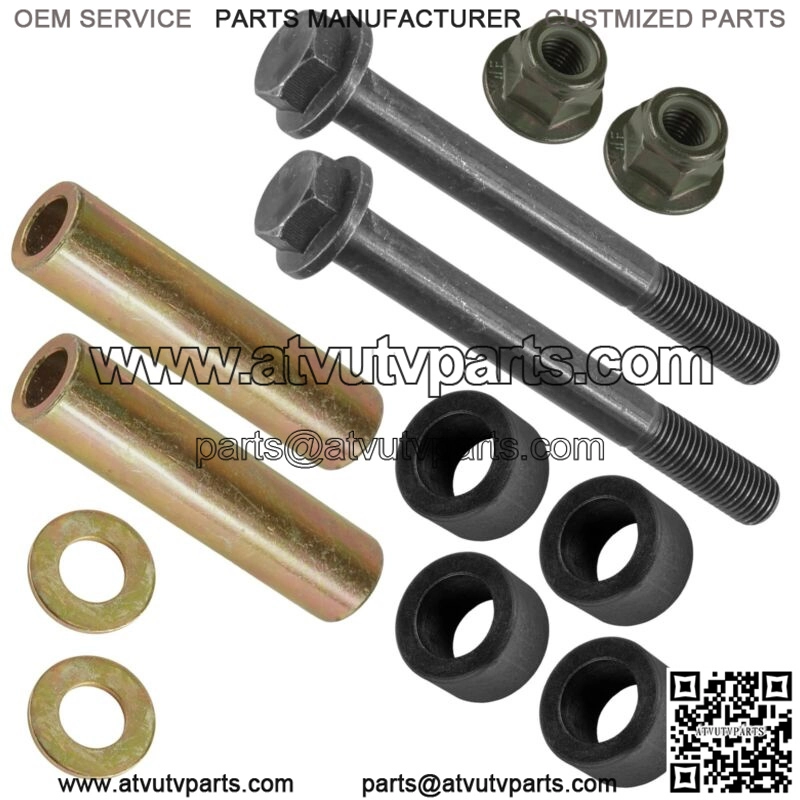

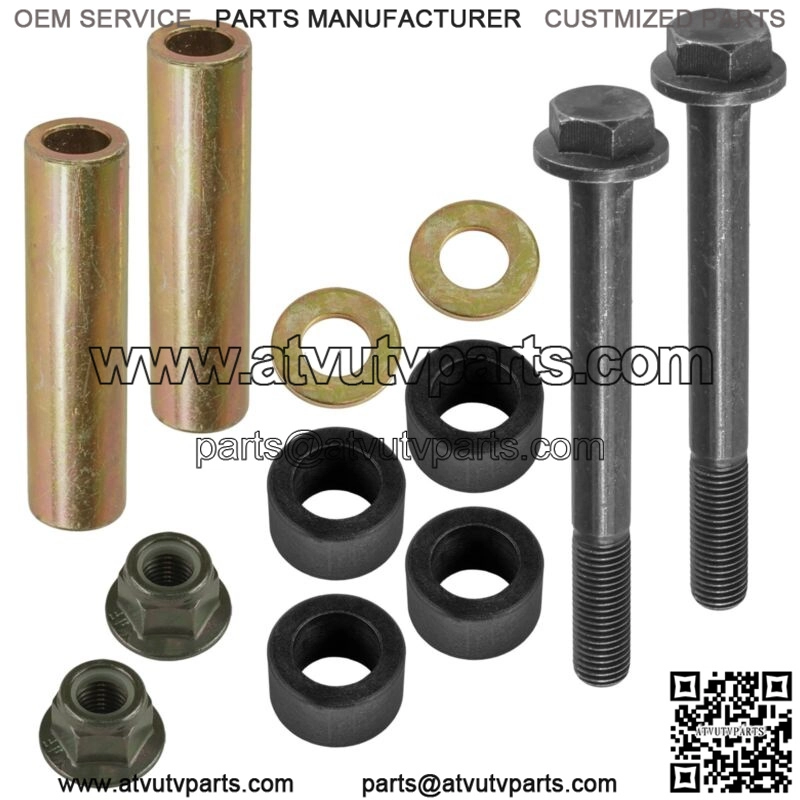

Front Lower Right 1024248-458Order Includes:
2 x Pivot Shaft | 5139966
4 x Bushing | 5452233

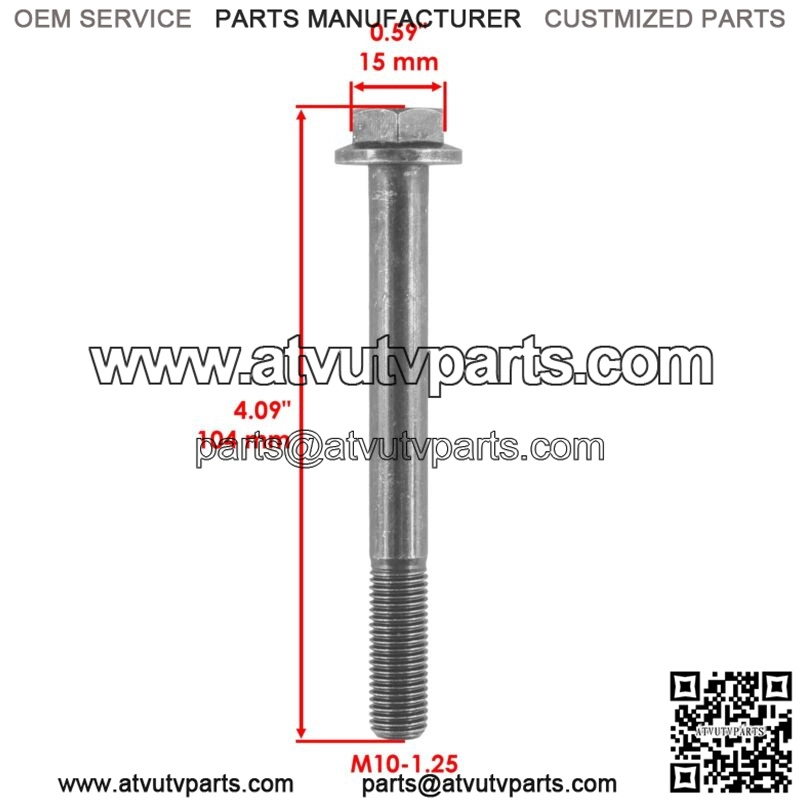

2 x Bolt | 7519043
2 x Nut | 7547333
2 x Washer | 7556153Dimensions & Measurements :

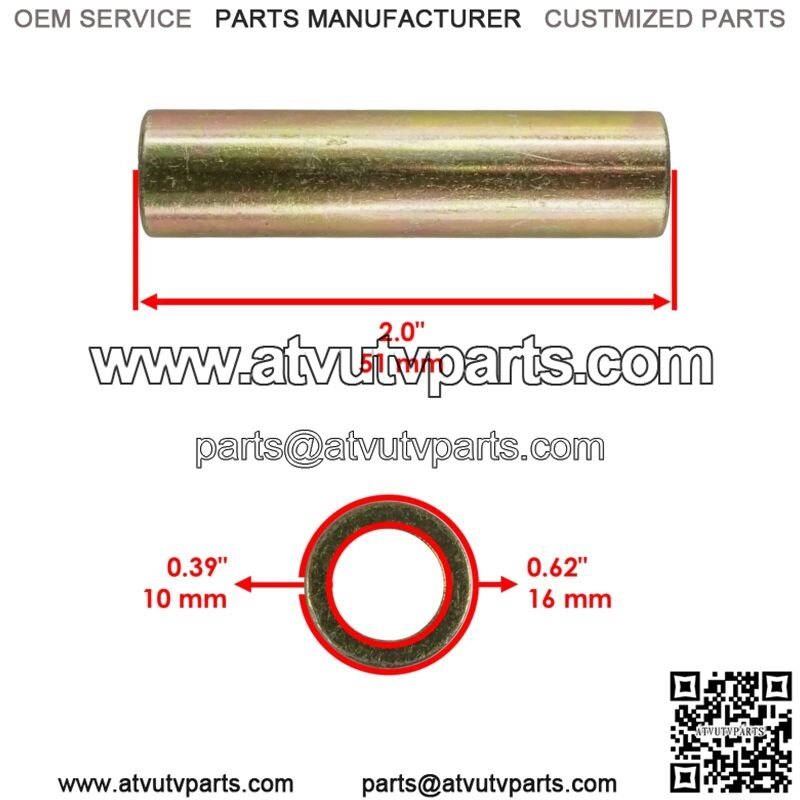

Pivot Shaft
Length:51mm
Inner Diameter:10mm
Outer Diameter:16mm
Bushing
Outer Diameter:26mm
Inner Diameter:16.5mm
Height:15.5mm

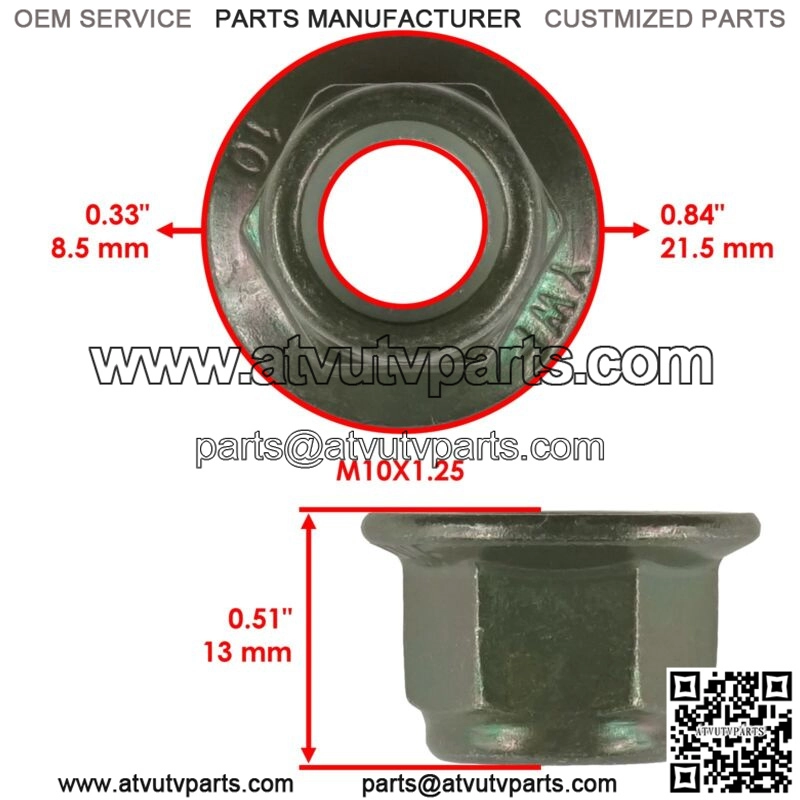

Nut
M10x1.25Part Number :Pivot Shaft | 5139966
Bushing | 5452233
Bolt | 7519043
Nut | 7547333
Washer | 7556153
**
