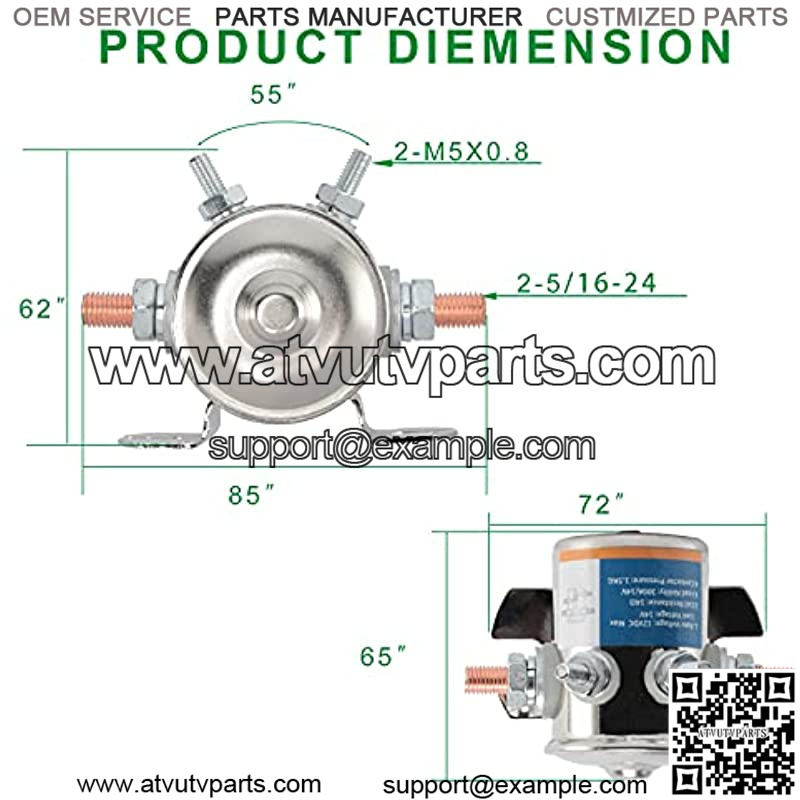

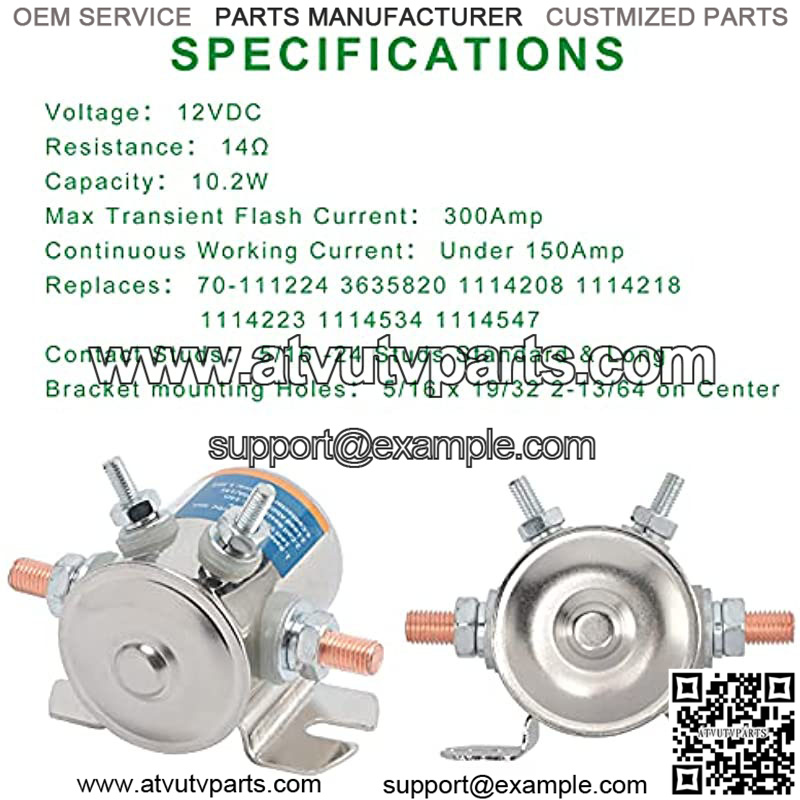

CIRCUIT CHARACTERISTICS – Single pole single throw with 2 SLIVER POINT. Resistance is 14, Capacity is 10.2W,12 V DC.
HIGH QUALITY – Copper wire temperature resistance: 180 . Cover is Nickel-Plating, Meet Environmental Plating Requirment, And Avoid Rusting, Shining

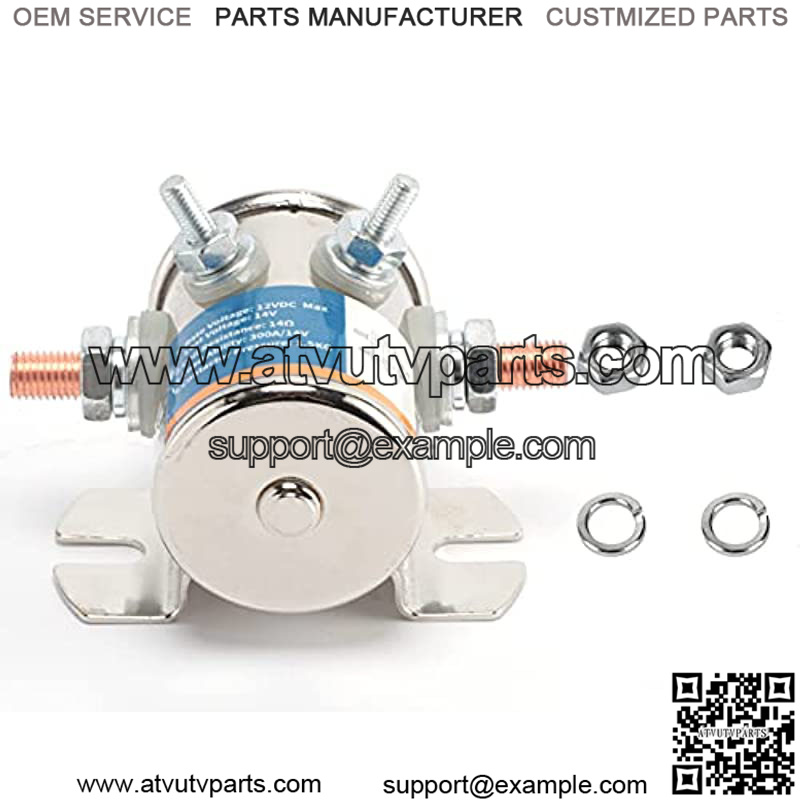

FITMENT – 300A Continuous Duty Solenoid Relay Nickel-Plating For Golf Carts,Winch, Marine
REPLACES – 70-111224,3635820, 1114208, 1114218, 1114223, 1114534, 1114547.
BUY WITH CONFIDENCE – We have superior after-sales service, if you are not 100% satisfied with your purchase, simply contact us for a replacement or refund.
Technical requirements:
1. The product conforms to OC / t695-2002 general relay standard
2. There are no missing parts and fasteners are not loose;
3. Voltage: 12 0.48v
4. Circuit characteristics: single pole single throw
5. Coil parameters: wire diameter: 0 . 4, number of turns: 1200, temperature resistance: 180
6. 12V: the starting voltage
7. Coil winding resistance value test: 12V resistance value = 10 . 5Q 5 % ( 20 )
8. White zinc plating on shell, 8 thick, 48 hours salt spray
9. Insulation resistance: the sine wave voltage is 550V and the test lasts for 1min. The insulation will not be broken down
10. Use temperature range (- 30 ~ + 85) degrees
11. Relative humidity less than 90%
12. Contact load current 300A, duration 3S; contact voltage drop 0.2V (20A)
13. Maximum instantaneous current 600A (within 3 seconds)
14. Winding skeleton 30% reinforced flame retardant nylon
15. The durability of relay is tested more than 80000 times when it is powered on alone;
Test method: the coil winding of the relay is electrified for 1second at the same time, rest for 14second is a cycle. It is allowed to air cool the relay and keep the shell temperature below 90 .
