Force & Stroke: 45N, 15mm; Package Content :1pcs x DC Solenoid Electromagnet

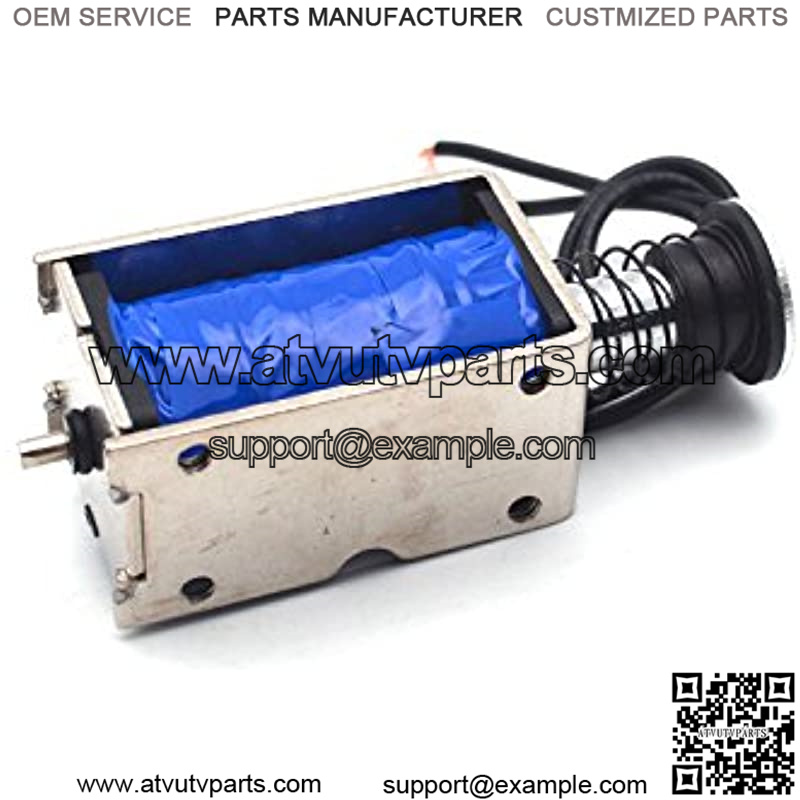

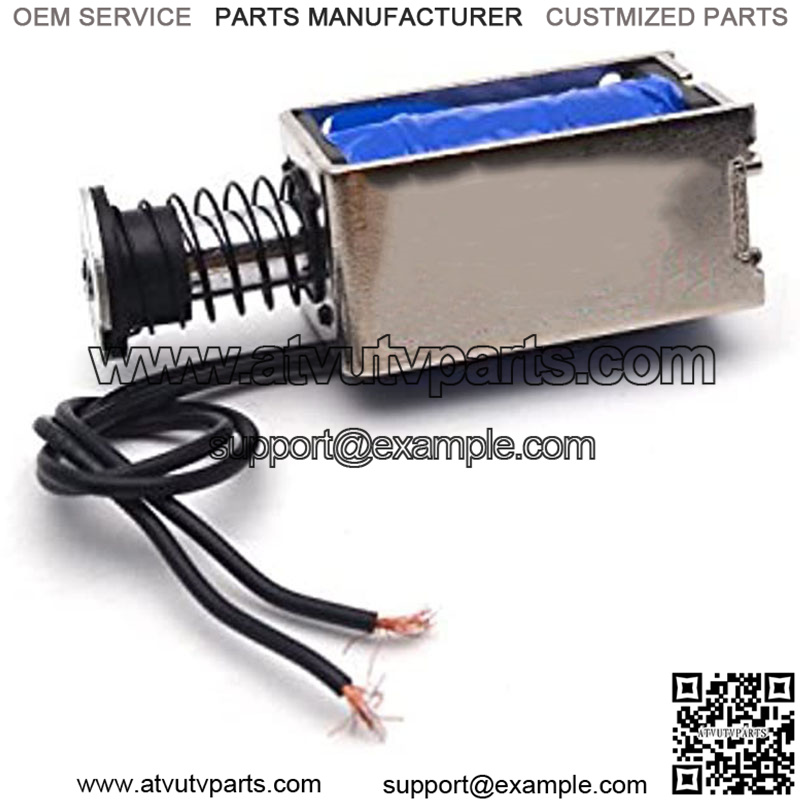

Push pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet.
Support DC 12V voltage, high power, push type, linear motion, is easy to install.
DC solenoid electromagnet mainly used in vending machines, rt equipment, office facility household appliance, mechanical, etc.
As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.
Specifications:
MModel: FJ-Z05
Type: Push Pull
Material: Metal, Electronic Parts
Electrical Rating: DC 12V, 2. 5A
Force & Stroke: 45N, 15mm, 4.5kg/9.9lb
Body Size: 30 x 50 x 25mm/1. 2″ x 2″ x 1″(L*W*H)
Wire Length: 16cm/6.3″
Screw Hole Diameter: 3mm
Mounted Hole Distance: 35mm/1.4″
Net Weight: 185g
Package Content:
1pcs x DC Solenoid Electromagnet
Notes:
1.) The colors may have difference as the different display, please understand.
2.) Please allow 1-2mm error due to manual measurement, please make sure you do not mind before you bid.
QUALITY GUARANTEE: If there is any quality problem, please feel free to contact us. Refund or Replacement for any quality problem.
