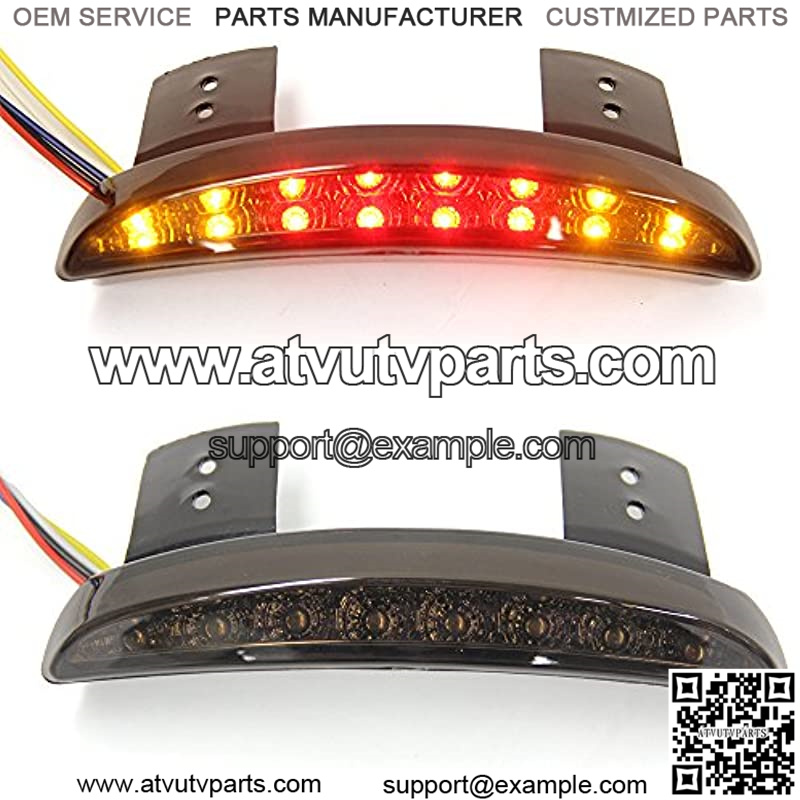

LED tail light with turn signal for Harley Davidson.

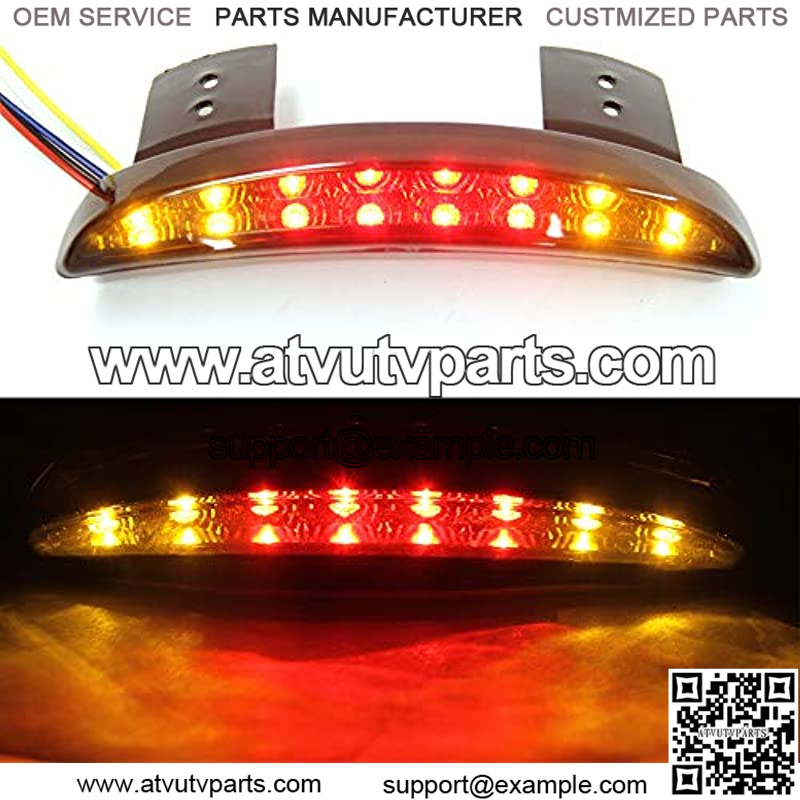

Super bright wide angle provide maximum visibility & safety. Brings you more safety, Visible By All Traffic. Curved design provides perfect match to the chopped rear fender.
5 Wire Connection: Red: Brake Light; Black-Ground; White& Blue-Turn signal light;Yellow-Running Light.
Low consumption LED lights with 80,000 hour life expectancy.
Fitment: For Harley Davidson 2004-2014 Sportster 883, Sportster 1200; 2014 Iron 883;2010-2014 Forty Eight; 2013-2014 Seventy Two
Color:Smoke Lens-signal
Product details:
Input Voltage:DC 12V
Wattage:1.44W(8 LED,0.18W/LED)
Light Color:RED
Material:ABS Plastic

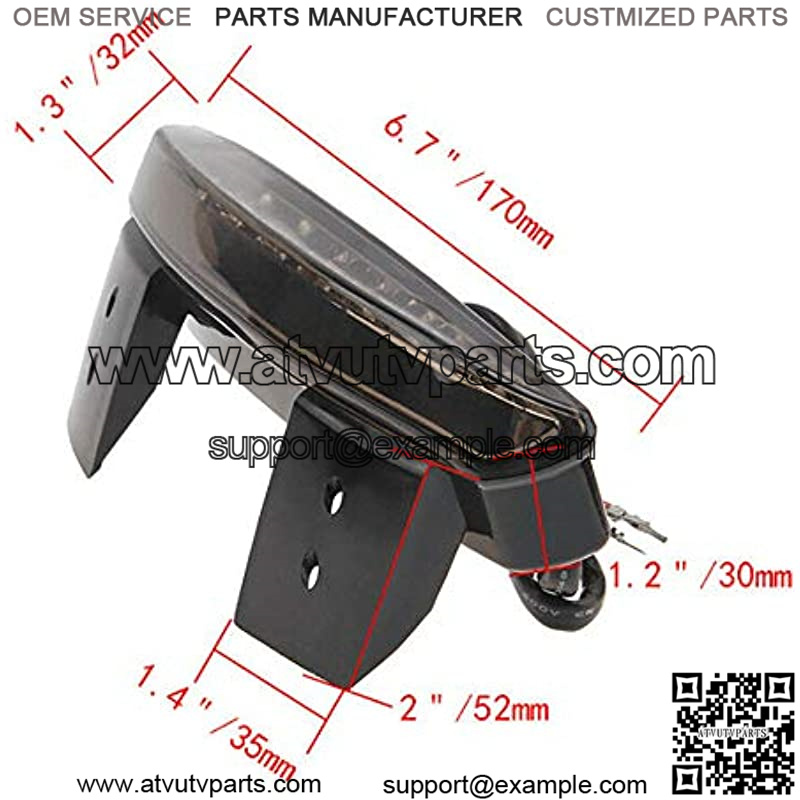

Dimension:SEE THE PICTURE
Wire Length:75cm

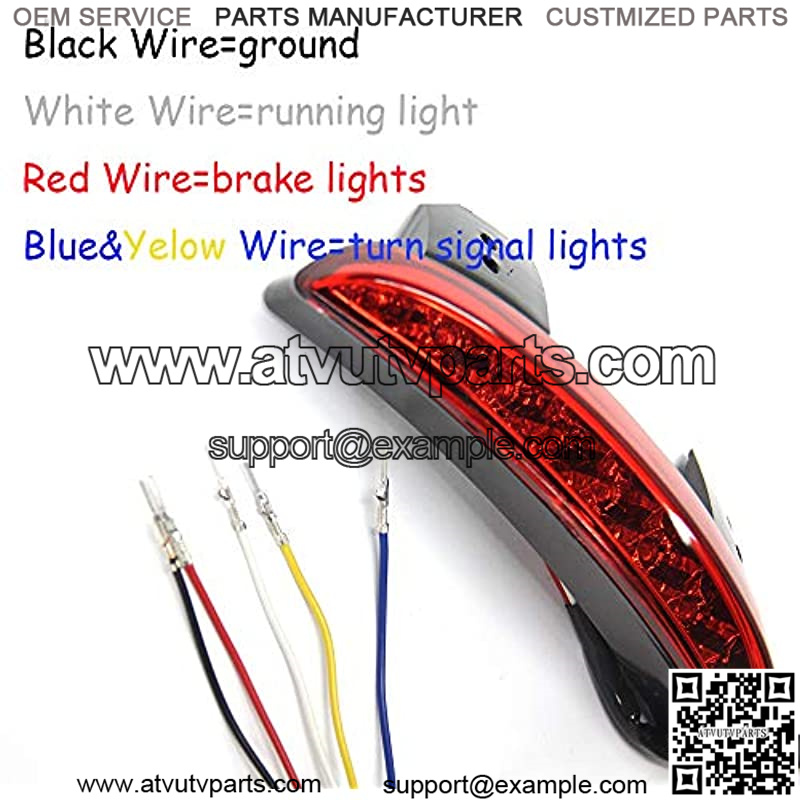

5 Wire Connection:
Red: Brake Light
Black-Ground
White & Blue -Turn signal light
Yellow-Running Light
Instructions:Not Included
Fitment:
fit for Harley Davidson Forty Eight XL1200X 2010-2016
fit for Harley Davidson Iron 883 XL883N 2009-2016
fit for Harley Davidson Seventy Two XL1200V 2013-2016
fit for Harley Davidson Softail Slim FLS 2012-2016
fit for Harley Davidson Sportster 1200 Nightster XL1200N 2007-2012
fit for Harley Davidson Sportster 1200 Roadster 2016
fit for Harley Davidson Blackline FXS 2011-2013 fit for Harley Davidson Dyna Street Bob 2013-2016
Fits for models equipped with Chopped Rear Fender Kit P/N 60236-XX and side-mount license plate.
Notice:DOES NOT fit models with center-mount license plates.
Above, Harley model and year no mention may be considered inappropriate (except the client had to make alterations).
Note: If the other brand models, the following two conditions can be regarded as appropriate:
1. dimension of the fender curvature and bending close to this product
2. short-tailed fender, (the length of the fender of the bike turning over long tail lamp deemed)
