Primary Drive Clutch Kit for Polaris General 1000 Deluxe EPS 2018-2023 / 1323241 (For: Polaris)

Categories
Product tags
air filter axle bearing belt bracket brake brake cable brake disc carburetor car lamp car light centrifugal clutch clutch clutch cable clutch parts clutch pulley disk brake drive belt electromagnetic valve front fork gasket holder ignition coil ignition spark booster jump-spark coil Lamps Lift Kit Lights lowering kit protective cover pulley clutch shaft shock absorber solenoid solenoid valve spark coil sparking coil starter motor switch throttle cable tire tool tyre washer wheel hub
Primary Drive Clutch Kit for Polaris General 1000 Deluxe EPS 2018-2023 / 1323241 (For: Polaris)
Primary Drive Clutch Kit for Polaris General 1000 Deluxe EPS 2018-2023 / 1323241 (For: Polaris) - Image 2
Primary Drive Clutch Kit for Polaris General 1000 Deluxe EPS 2018-2023 / 1323241 (For: Polaris) - Image 3
Primary Drive Clutch Kit for Polaris General 1000 Deluxe EPS 2018-2023 / 1323241 (For: Polaris) - Image 4
Primary Drive Clutch Kit for Polaris General 1000 Deluxe EPS 2018-2023 / 1323241 (For: Polaris) - Image 5

Primary Drive Clutch Kit for Polaris General 1000 Deluxe EPS 2018-2023 / 1323241 (For: Polaris)

SKU LHQPJ.07043 1321622, 5020422, 5438247 5430702 5430945, 5450940, 7512266, 7541906 3235320, 7547498, 7556335, 3514492, 3576510, 5632894, 5438963, 3514609, 1323068 1323241, 5633496, 7044263 Category Tag
SPREAD THE LOVE

Description

Premium Quality Replacement Part
Primary Drive Clutch Rebuild Kit
For Polaris Models:General 1000 Deluxe EPS 2018-2023
Order Includes:3x Weight: | 5633496 (29-66)1x Spring: | 70442631x Needle Bearing (Non EBS) | 35146093x Roller: | 13216223x Roller Pin: | 50204226x Roller Washer: | 5438247 5430702 54309456x Button: | 54509403x Shoulder Bolt: | 75122663x Nut 7541906: | 32353201x Jam Nut: | 75474982x Washer: | 75563351x DU Bushing: | 35144921x Bushing Cover: | 35765101x Spacer: | 56328942x Washer: | 5438963
Dimensions & Measurements:
Needle Bearing
Item Height: 44.30 mm | 1.74″Item Outer Diameter: 31.70 mm | 1.24

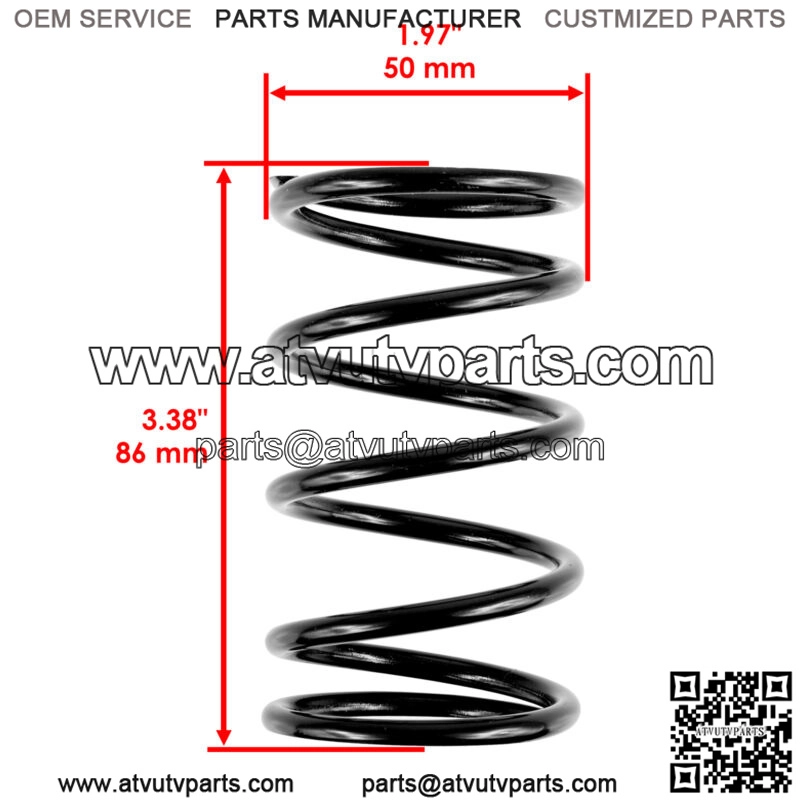

Clutch Spring
Item Length: 86 mm | 3.38″Item Width: 50 mm | 1.97″

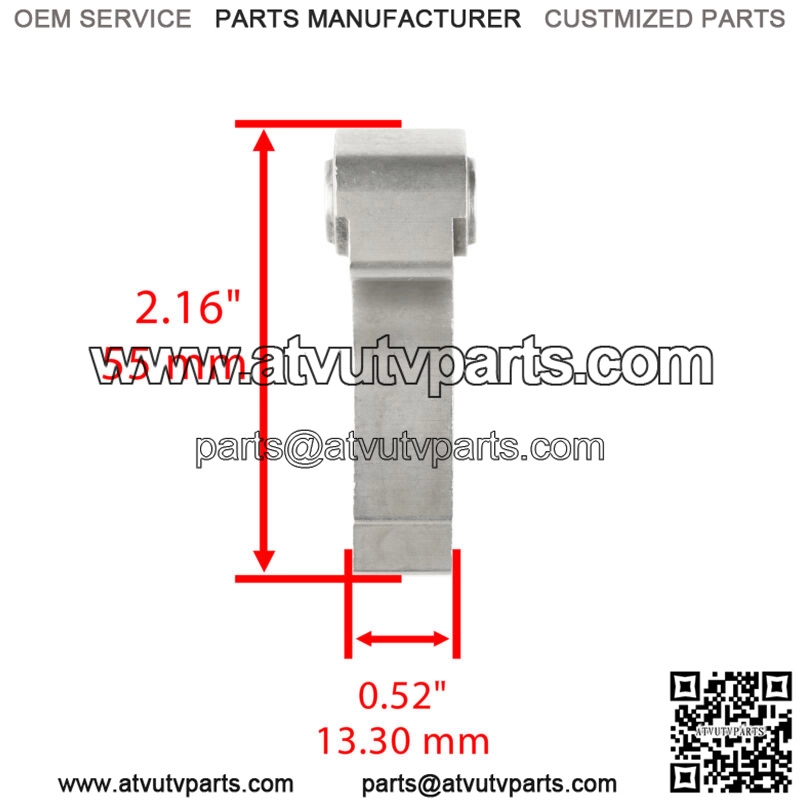

Clutch Weight (29-66)
Item Length: 55 mm | 2.16″Item Thickness: 13.30 mm | 0.52″
Hote:
The kit includes Non EBC Bearing
**
