Premium Quality Replacement Part
Rear Upper Outer Left or Right Bushing Kit
For Polaris Models:
Ranger Crew XP 1000 2017-2018

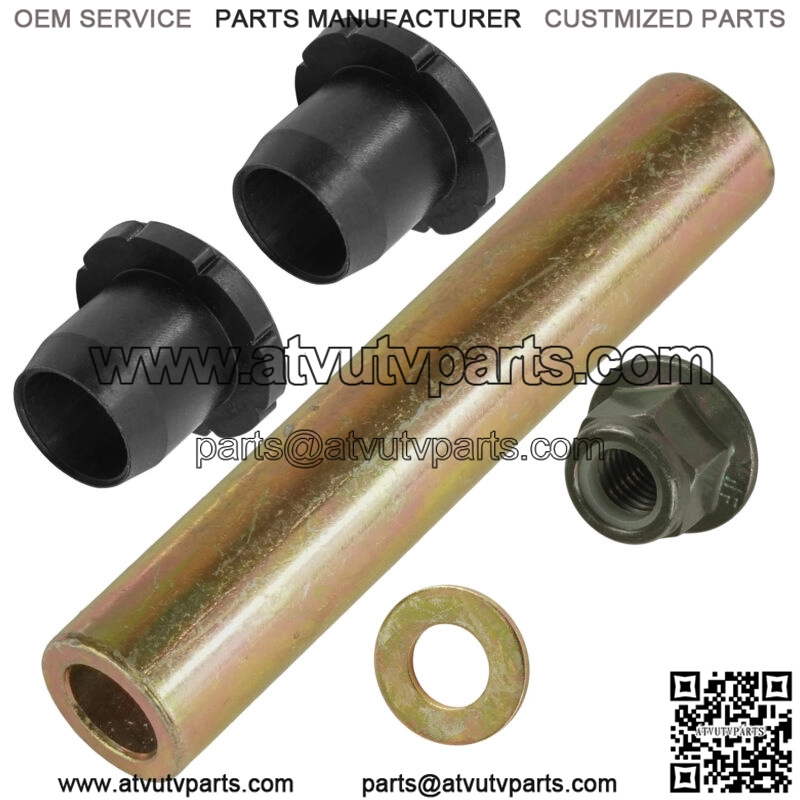

Order Includes:

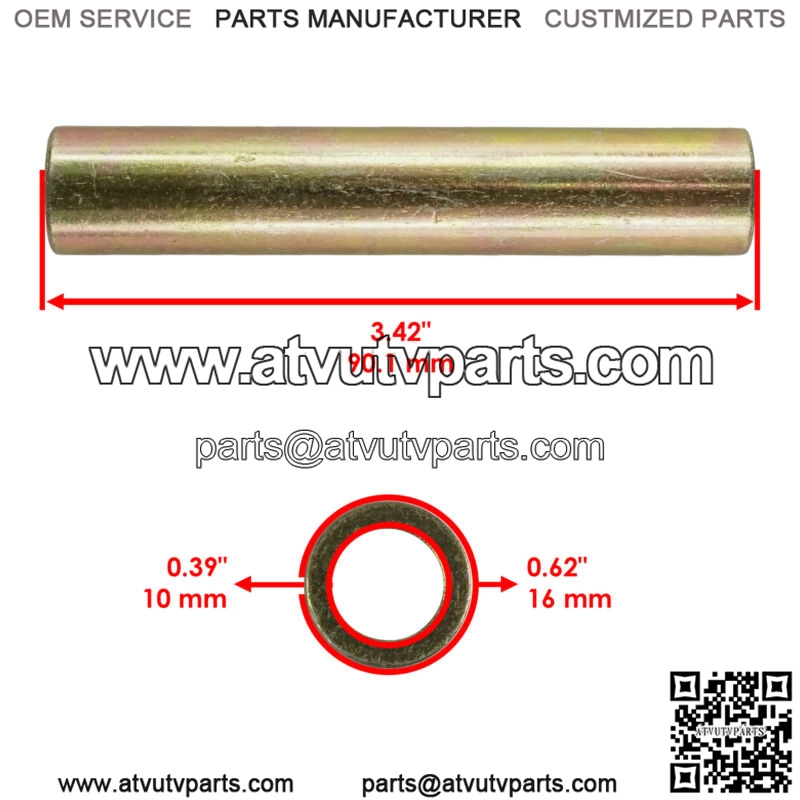

1 x Pivot Shaft | 5138794
Length: 90.1 mm | 3.42″
Inner Diameter: 10mm | 0.39″
Outer Diameter: 16mm | 0.62″

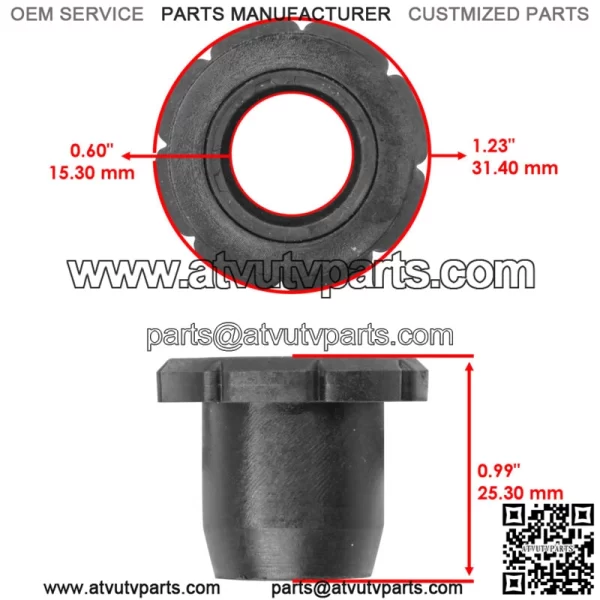

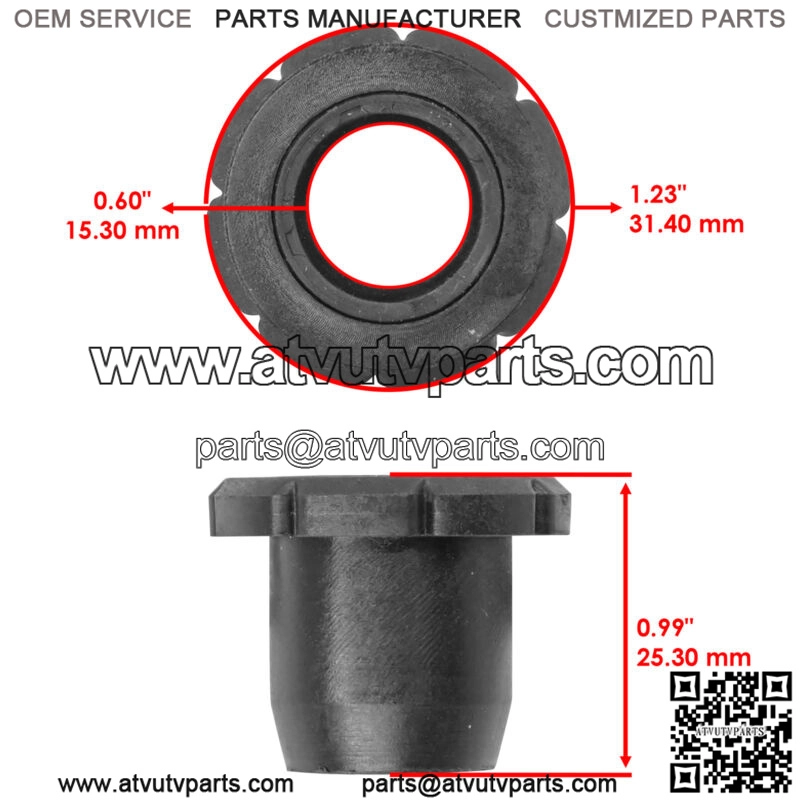

2 x Bushing | 1543367 1543152
Width: 25.3mm | 0.99″
Inner Diameter: 15.3 mm | 0.6″
Outer Diameter: 31.4 mm | 1.23″

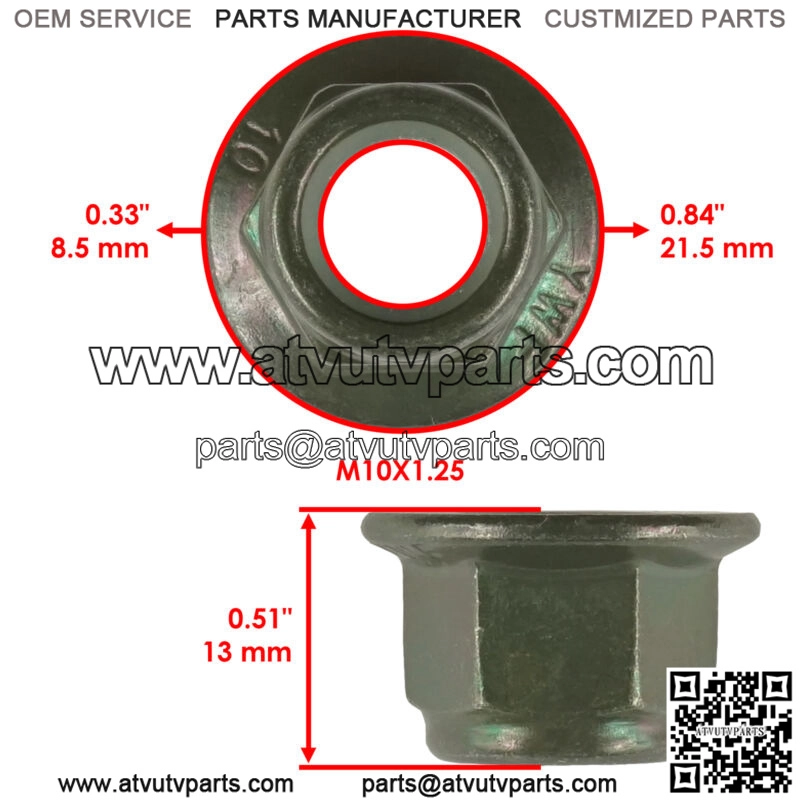

1 x Nut | 7547333
Width: 13.0 mm | 0.51″
Inner Diameter: 8.5 mm | 0.33″
Outer Diameter: 21.5 mm | 0.84″
Thread Size: M10x1.25
1 x Washer | 7556153
Note : Installs On Location (E) In Second Picture
Rear A-Arm Part Number:
Upper Left: 1018465-458 1018465-689 1018465-589 1018465-385 1022819-458 1022819-293 1022819-689
Upper Right: 1018466-458 1018466-689 1018466-589 1018466-385 1022820-458 1022820-689 1022820-293
Rear Bearing Carrier Left: 5138501 5138052 5137676
Rear Bearing Carrier Right: 5138502 5138053 5137677
