Rear A Arm Bushing Kit For Polaris Sportsman 450 HO 2×4 2016-2017
SPREAD THE LOVE
Description
Premium Quality Replacement Part
Rear Upper Lower Inner Outer Left & Right A Arm Bushing Kit
For Polaris Models:
Sportsman 450 HO 2×4 2016-2017
Sportsman 570 EPS 2016-2017
Sportsman 570 Touring 2016-2017
Sportsman 570 6×6 Big Boss 2017-2023
Sportsman X2 570 EPS 2017
Sportsman SP 570 EPS 2016
Order Includes:

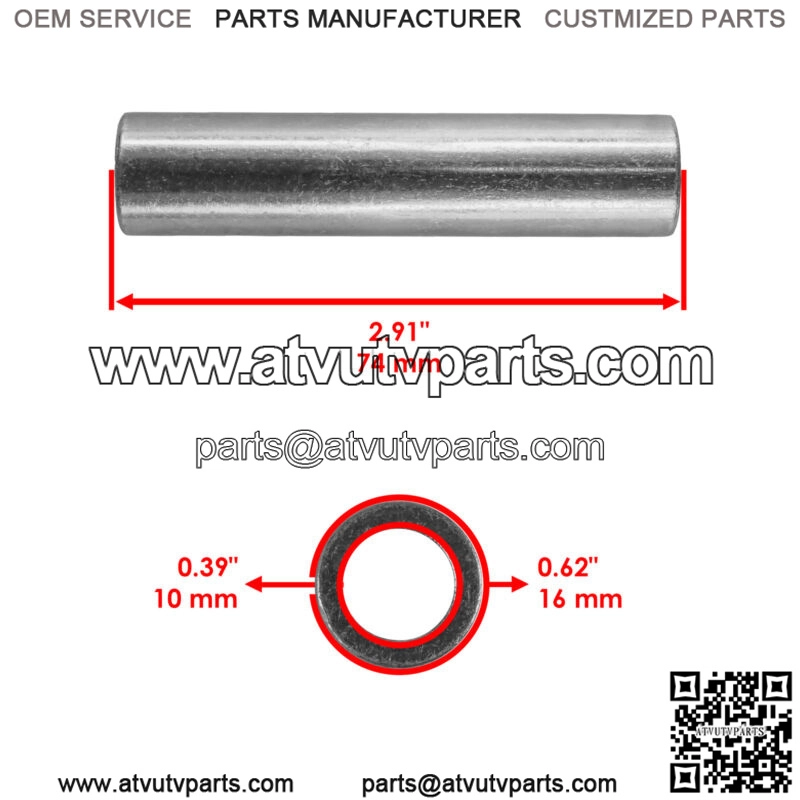

6 x Pivot Shaft: 5020826
Length: 74mm
Inner Diameter: 10mm
Outer Diameter: 16mm

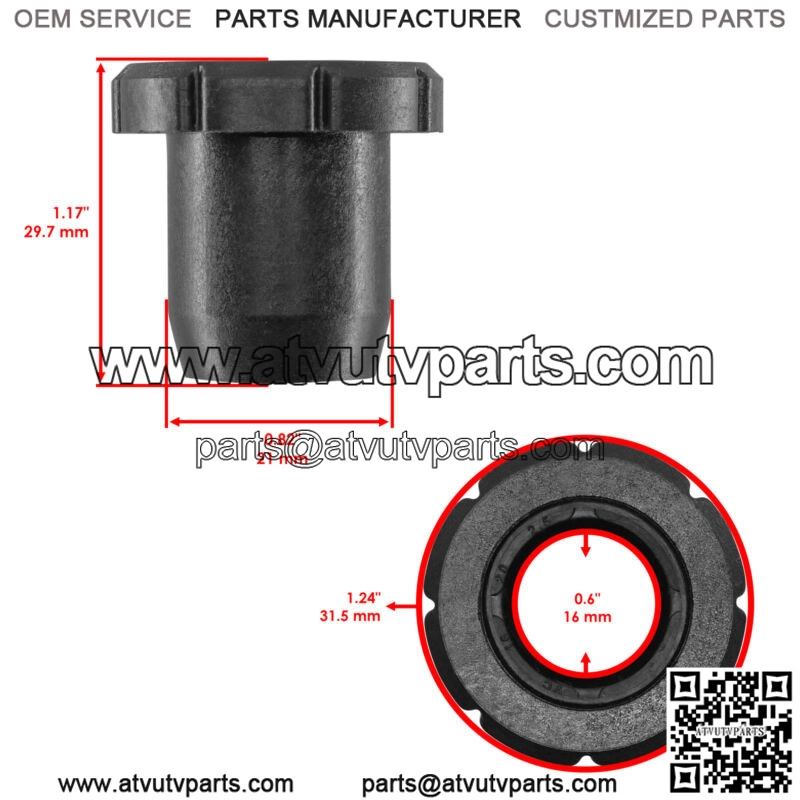

12 x Bushing: 1543326
Length: 297mm
Inner Diameter: 16 mm
Head Diameter: 315mm
Tube Diameter: 21mm

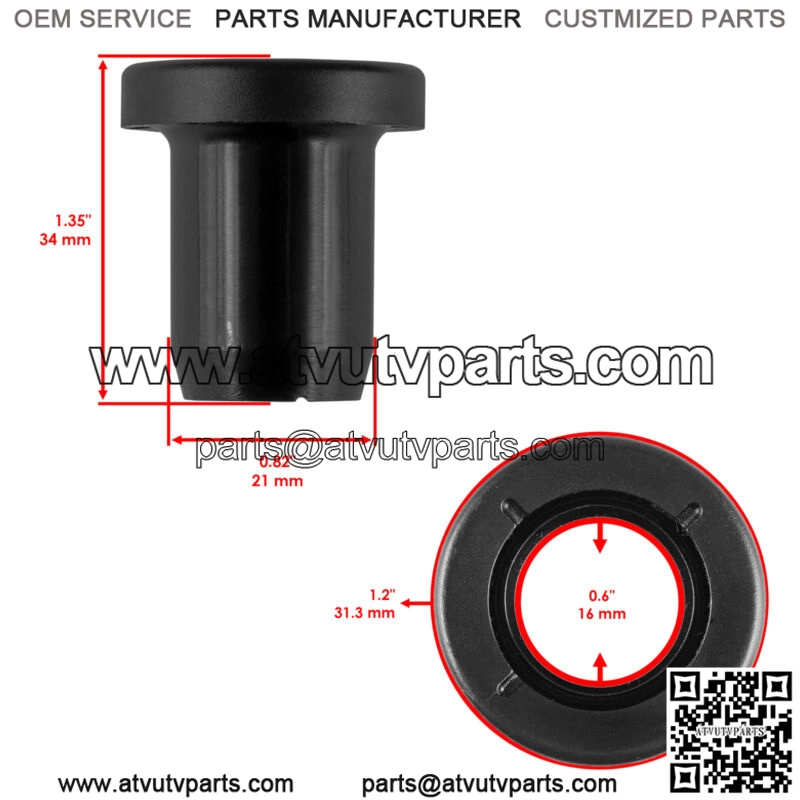

4 x Bushing : 5439270 5436972 5438895 5431846 5432091 5433063 5434548
Length: 34mm
Inner Diameter: 16 mm
Head Diameter: 313mm
Tube Diameter: 21mm

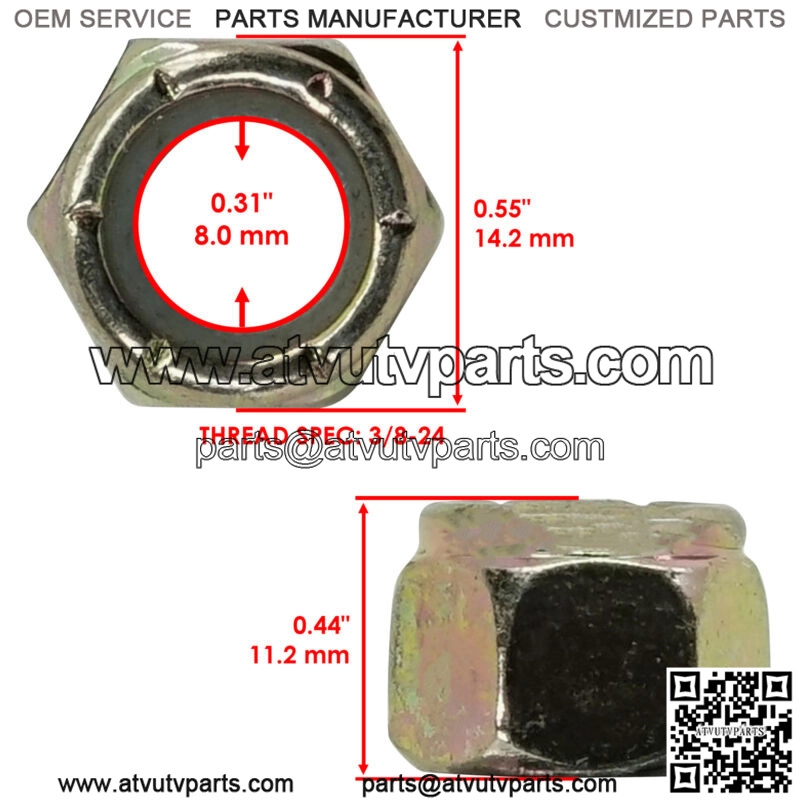

6 x Nylock Nut : 7542439 7542453
Width: 11.2mm
Inner Diameter: 8 mm
Outer Diameter: 14.2 mm
2 x Long Pivot Shaft: 5139929
Length: 282.6mm
Inner Diameter: 8.2mm
Outer Diameter: 16mm
4 x Flange Washer: 7556153
Thickness: 2mm
Inner Diameter: 106mm
Outer Diameter: 198mm
4 x Bolt: 7517873
Height: 77mm
Length: 15.6mm
Thread Size: 7/16-14
8 x Bushing: 5438902
Width: 185mm
Inner Diameter: 31mm
Outer Diameter: 475mm
4 x Bushing: 5632291
Length: 483mm
Inner Diameter: 114mm
Outer Diameter: 31mm
Rear Upper A Arm Part Number
Left: 1017747-458 1017747-067
Right: 1017748-458 1017748-067
Rear Lower A Arm Part Number
Left: 1015888-458 1015888-067
Right: 1015889-458 1015889-067
Bearing Carrier: 5135563
