Rear And Front CV Axles For Can-Am Traxter T HD5 2020 SidexSide
SPREAD THE LOVE
Description
Premium Quality Replacement Part
Rear And Front CV AxlesFor Can-Am Models:Traxter T HD5 2020Order Includes:1x Rear Left CV Axle : 705502478

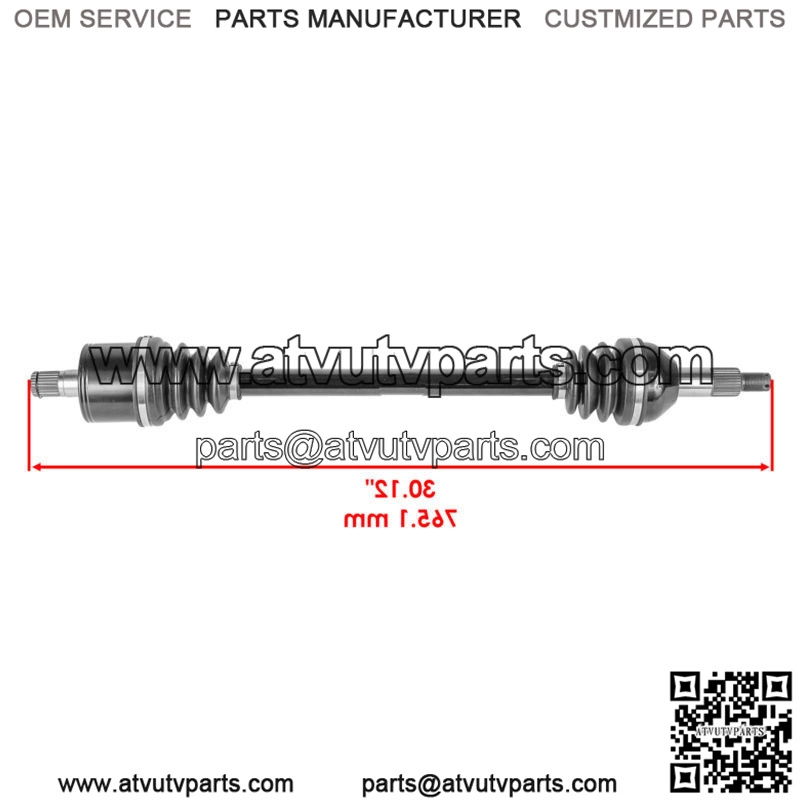

Length : 765.1 mm | 30.12 ”

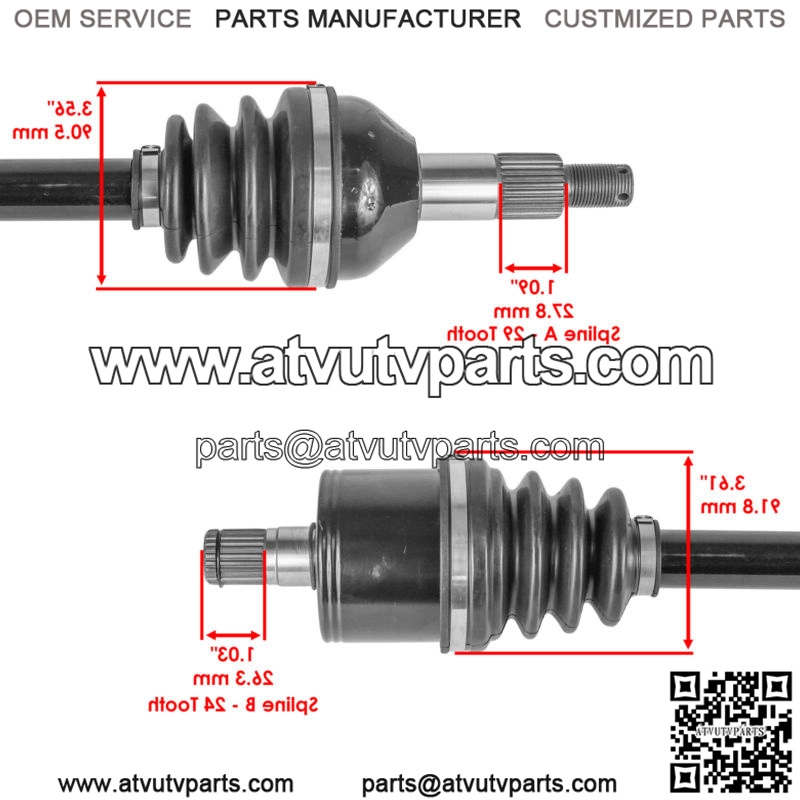

Spline A Length : 27.8 mm | 1.09 ”
Spline A Boot Width : 90.5 mm | 3.56 ”
Spline A – 29 Tooth
Spline B Length : 26.3 mm | 1.03 ”
Spline B Boot Width : 91.8 mm | 3.61 ”
Spline B – 24 Tooth
1x Rear Right CV Axle : 705502479

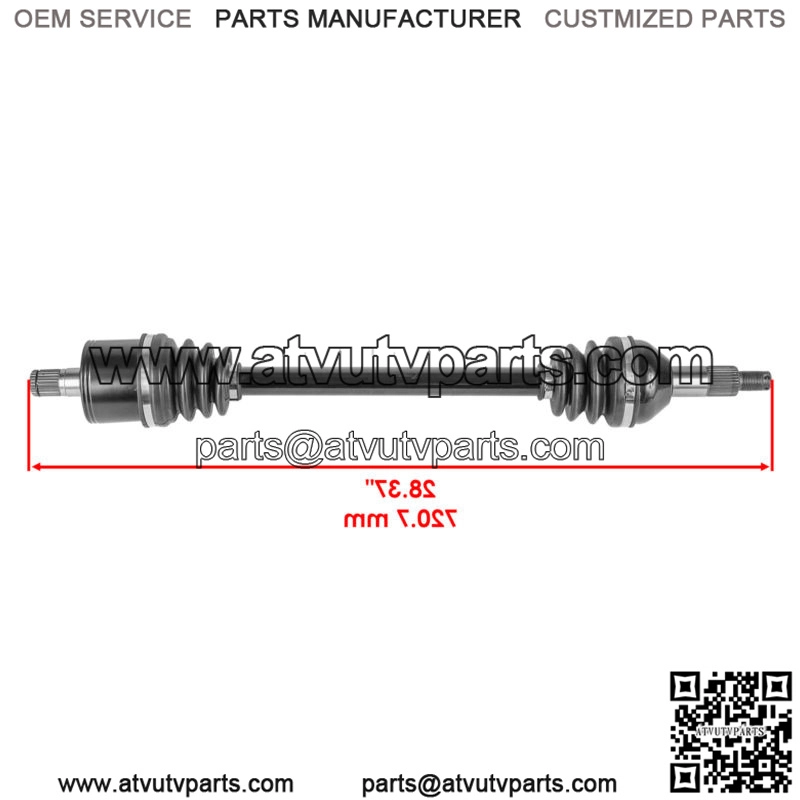

Length : 720.7 mm | 28.37 ”
Spline A Length : 28.3 mm | 1.11 ”
Spline A Boot Width : 90 mm | 3.54 ”
Spline A – 29 Tooth
Spline B Length : 26.9 mm | 1.05 ”
Spline B Boot Width : 90.4 mm | 3.55 ”
Spline B – 24 Tooth
1x Front Left CV Axle : 705401937
Length : 758.8 mm | 29.87 ”
Spline A Length : 26.8 mm | 1.05 ”
Spline A Boot Width : 79.2 mm | 3.11 ”
Spline A – 29 Tooth
Spline B Length : 59.6 mm | 2.34 ”
Spline B Boot Width : 76.6 mm | 3.01 ”
Spline B – 21 Tooth
1x Front Right CV Axle : 705401936
Length : 711.2 mm | 28 ”
Spline A Length : 25.7 mm | 1.01 ”
Spline A Boot Width : 78.7 mm | 3.09 ”
Spline A – 29 Tooth
Spline B Length : 23.5 mm | 0.92 ”
Spline B Boot Width : 73.9 mm | 2.9 ”
Spline B – 21 Tooth**
