Premium Quality Replacement Part
Rear Knuckle Lower Left & Right Bushing
Compatible with Polaris Models:
RZR 800 EFI 2008-2014
RZR S 800 EFI 2009-2014
RZR 4 800 EFI 2010-2014
RZR 900 50/55 inch 2015
RZR S 900 60 inch 2015
Sportsman 800 Touring EFI 2008-2009
Sportsman X2 800 EFI 2008-2009
Sportsman 500 Touring EFI HO 2008-2013
Sportsman X2 500 EFI 2008-2009
Sportsman X2 700 EFI 2008
Order Includes:

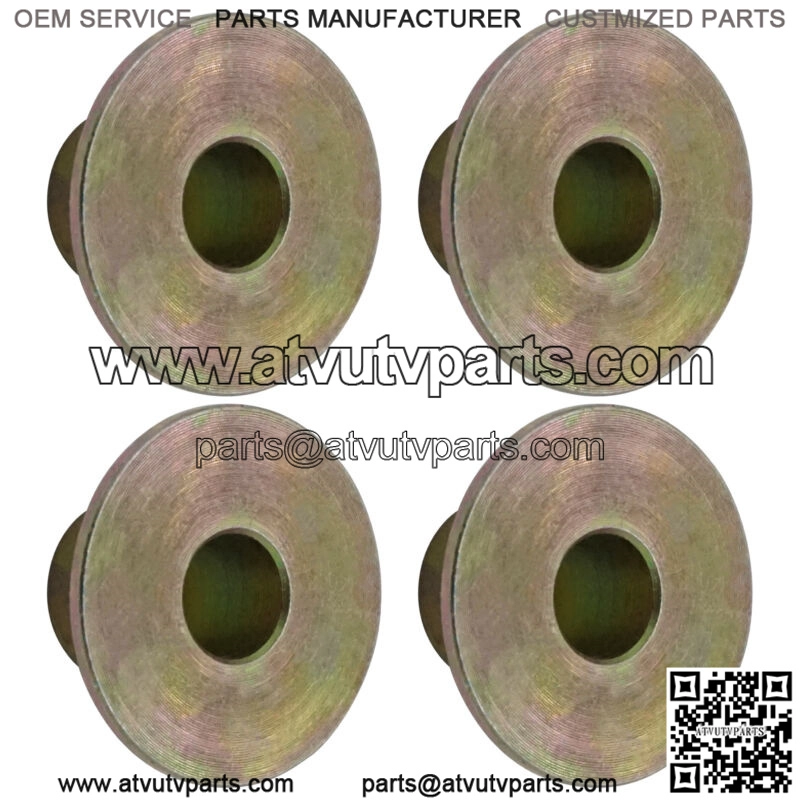

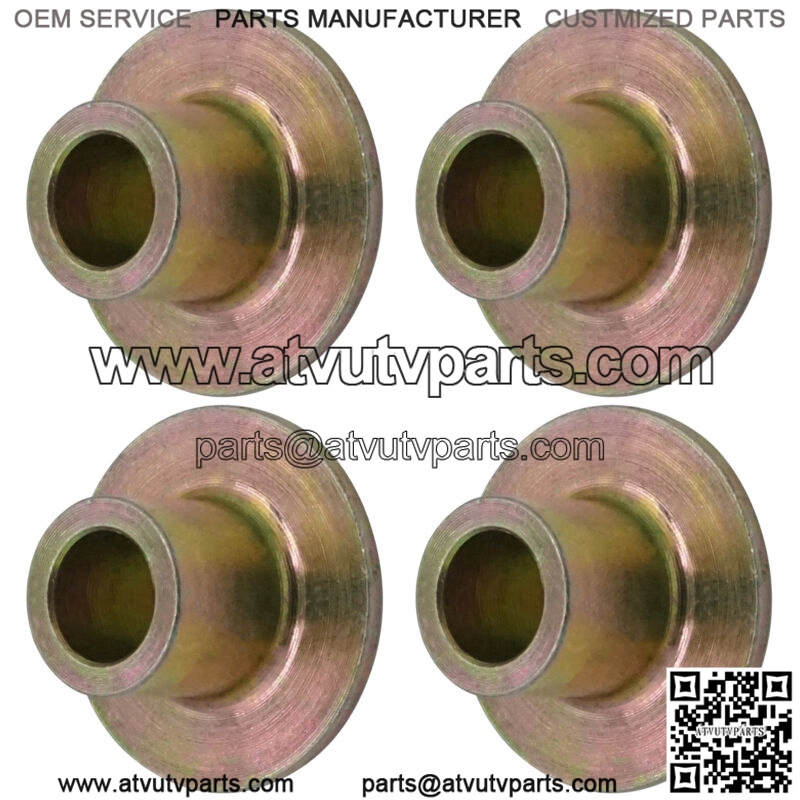

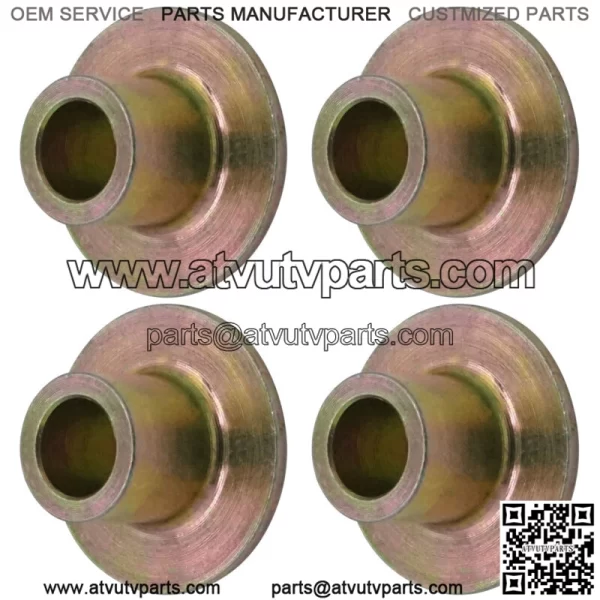

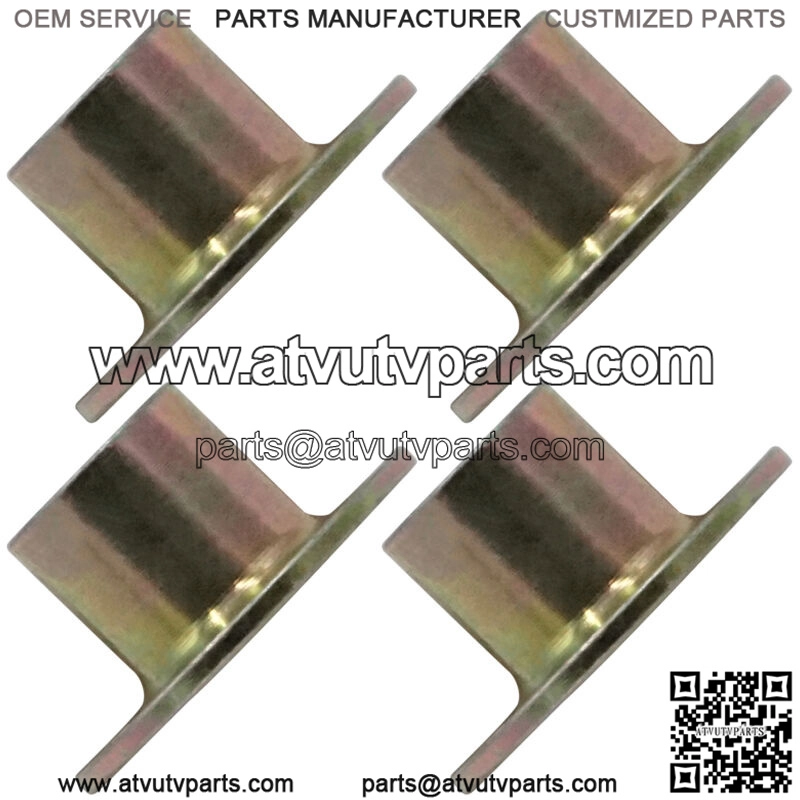

4 x Bushing: 5136102

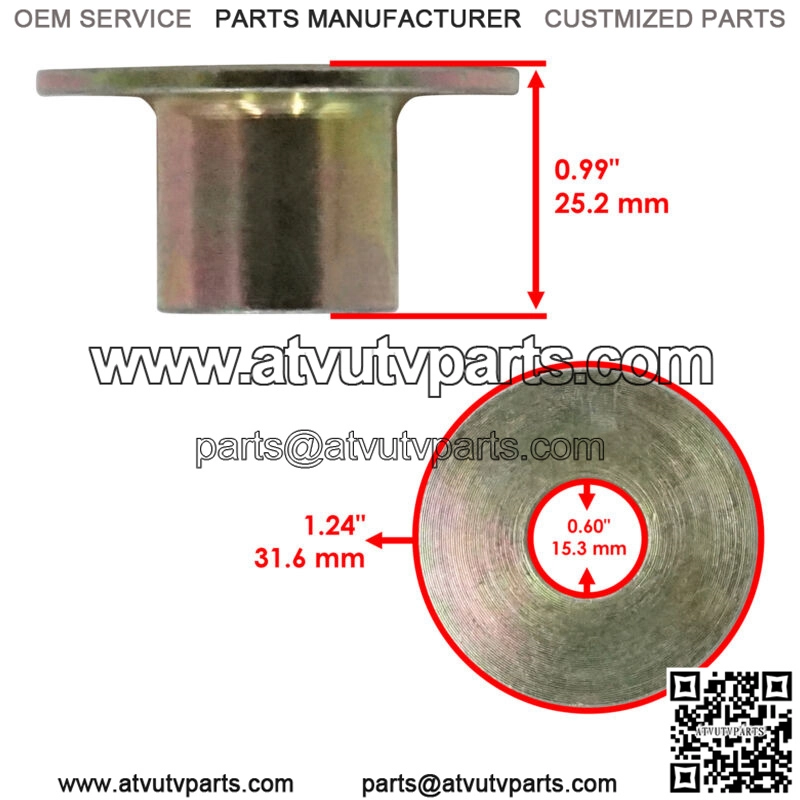

Width: 25.2 mm – 0.99 in
Inner Diameter: 15.3 mm – 0 6 in
Outer Diameter: 31.6 mm – 1.24 in
Note: Installs On Location (E) In Second Picture
Rear Upper Control Arm Part Number:
Left: 1019945-458, 1019945-385, 1018820-458, 1018820-385
1016474-385, 1018188-385, 1016474-458, 1017579-458
1018188-458, 1015450-458, 1018187-458, 1015848-067
Right: 1019946-458, 1019946-385, 1018821-458, 1018821-385
1016474-385, 1018188-385, 1016474-458, 1017579-458
1018188-458, 1015450-458, 1018187-458, 1015849-067
Rear Lower Control Arm Part Number:
Left: 1019947-458, 1019947-385, 1018822-458, 1018822-385
1021287-458, 1021287-385, 1016475-385, 1018217-385
1016475-458, 1018217-133, 1018217-458, 1015451-458
1018207-458, 1016022-067
Right: 1019948-458, 1019948-385, 1018823-458, 1018823-385
1021288-458, 1021288-385, 1016476-385, 1018218-385
1016476-458, 1018218-133, 1018218-458, 1015452-458
1018208-458, 1016023-067
Rear Knuckle Part Number:
Left: 5139770, 5143078, 5134984
Right: 5139771, 5143079, 5134985
