Specification:

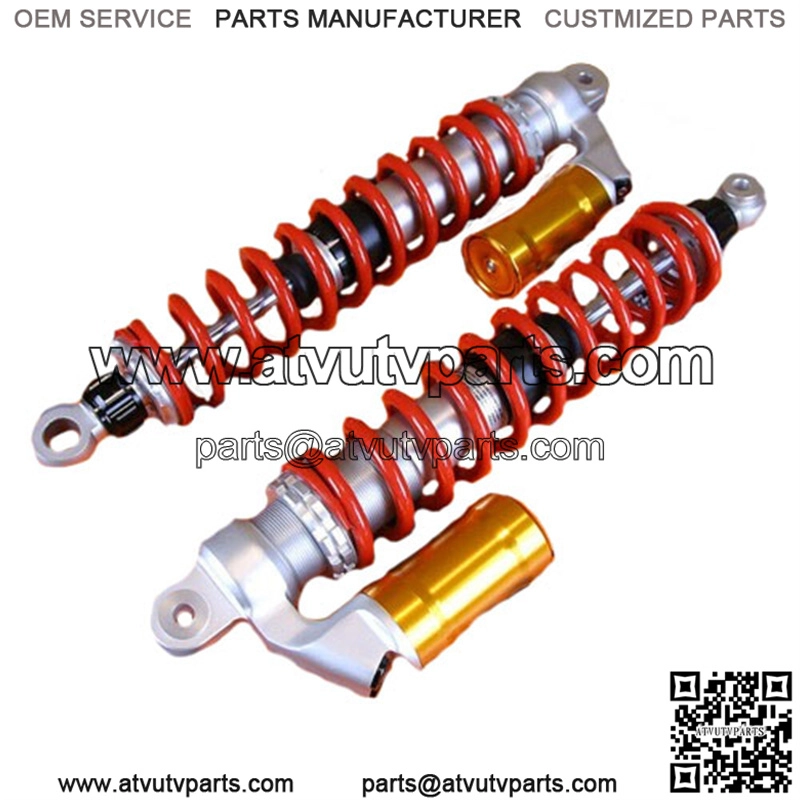

Item Type: Pair Air Front Shocks Absorbers
Material: Solid steel and aluminium alloy
Color: Red, Gold, Silver (as the picture shown)
Eyelet to Eyelet Length: 410mm
Eye Diameter: 10mm or 10.3mm
Spring thickness: 8.2mm
Spring Width(approx): 67mm
Max Load: 100kg-300kg
Features:
Beefed up upper and lower eyelets and caps made of aircraft grade aluminum
Heavy duty thicker gauge main springs increases the max loading to 1000lbs/pair
High quality reservoir oil seals
Pre-filled with high pressure nitrogen
Mechanical and Nitro adjustable
Constant rate springs
Air and oil dampening
Fitment:
For Suzuki ATV
For Yamaha YFZ450 2010-2013
For Yamaha Raptor 700R 2009-2017
For Yamaha Raptor 700 2006-2017
For Yamaha Raptor Raptor 660R 2001-2005
For Honda ATV
For Honda TRX450R (All Years)
For Honda Sportrax 400 TRX400EX (All Years)
For Honda TRX450ER (All Years)
For Suzuki ATV
For Suzuki Z400 QuadSport LTZ400 2003-2014
Note:
Please check the size measurement chart carefully before purchasing
Please allow 1-2mm for variance due to manual measurement
Installation instruction is not included
If you have any issue, please contact us, we will do our best to help you solve it.thanks. 🙂
Package Included:
1 Pair Air Front Shocks Absorbers (L & R)
1x Shocks Springs Adjustable Tools
